Connector Ring Natural PA 6.6 0.33x0.24 PK1000 CR2-M (Pack of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Connect Multiple Cable Bundles |
| Product Type | Connector Ring |
| Color | Natural |
| Environment | Indoor |
| For Use With | Cable Ties : M, I, S |
| Material | Nylon 6.6 |
| Maximum Installation Temperature (°C) | 85 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Installation Temperature (°F) | 185 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5 |
| Overall Length (In.) | 0.33 |
| Overall Length (mm) | 8.4 |
| Overall Width (In.) | 0.24 |
| Overall Width (mm) | 6.1 |
| Resistance Properties | Heat and Wear Resistance |
| Standards Met | UL Recognized #E136577 |
| Mount Method | Cable Tie |
| Part No | CR2-M |

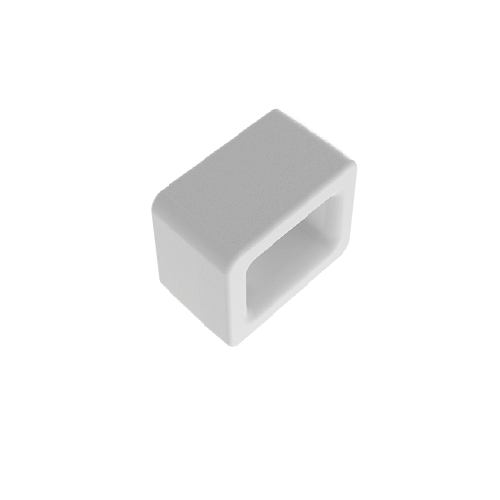

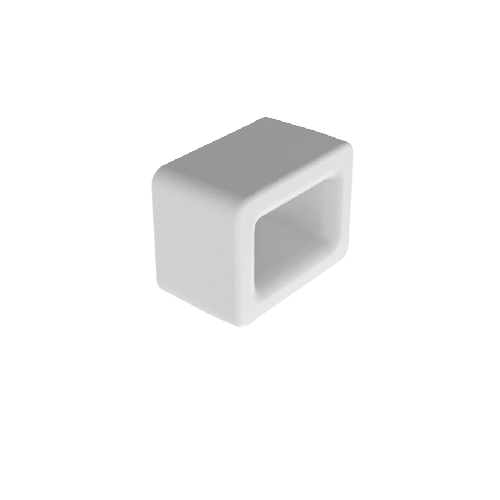

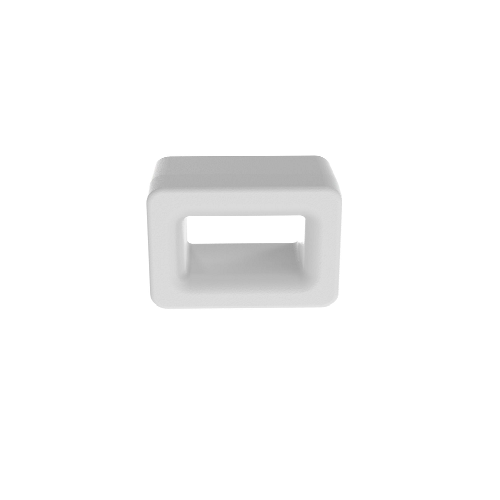

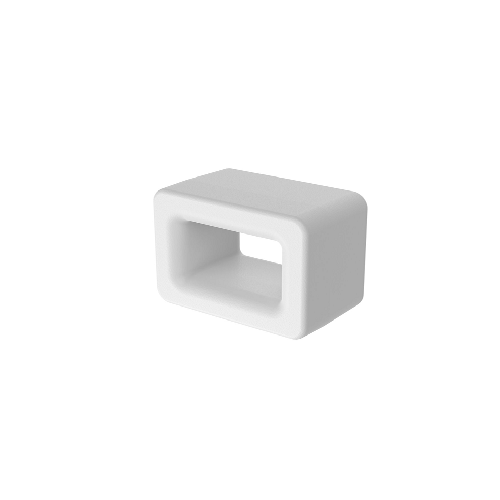

Connector Ring Natural PA 6.6 0.33x0.24 PK1000 CR2-M
DESCRIPTION :
Panduit CR2-M Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate and standard cable ties and are intended for indoor environments. They are 0.33” x 0.20” (8.4mm x 5.1mm) in size. Made of Nylon 6.6, are natural in color.
Download PDF Spec Sheet
