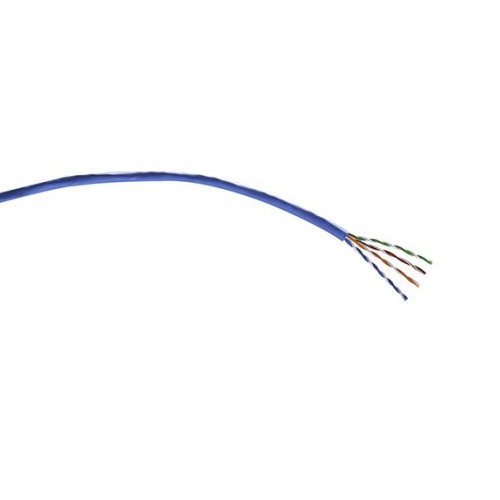

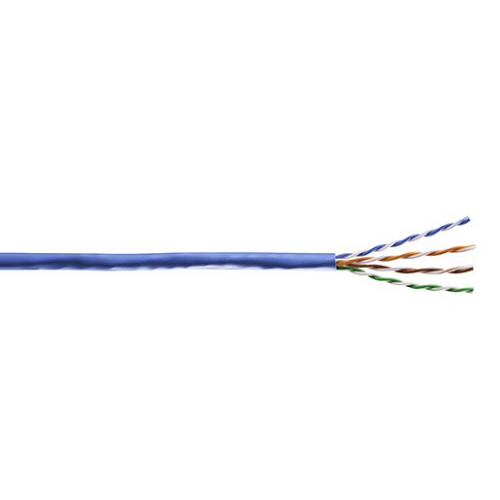

Category 5e 400 MHz CMP White Cable OCC-U5E4PLM-07

Product Information

Specification

DESCRIPTION:

CATEGORY 5e, POWER SUM CABLE CONSISTING OF 4 PAIRS, 24 AWG, UNSHIELDED WITH A LOW SMOKE PVC JACKET. c(UL)us CMP PER UL 444. PACHAGING TYPE: BOX

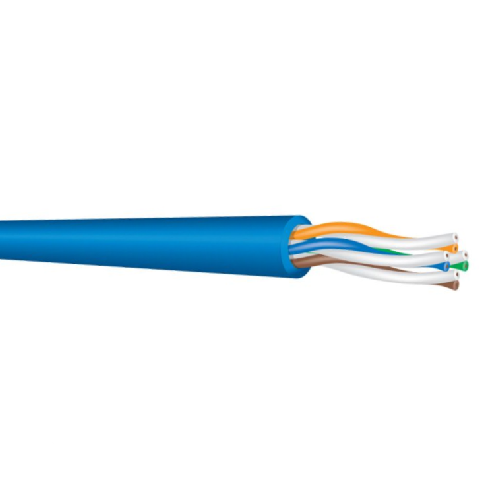

CONSTRUCTION:

• Conductor: 24 AWG (.020") solid bare copper

• Color Code:

   • Pair 1: Blue - White/Blue

   • Pair 2: Orange - White/Orange

   • Pair 3 - Green - White/Green

   • Pair 4: Brown - White/Brown

• Jacket:

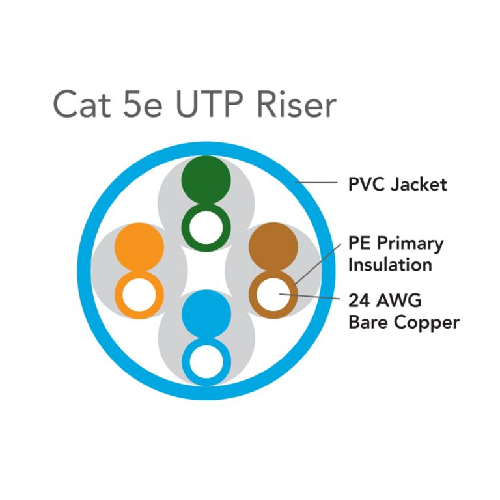

   • Riser - Flame Retardant PVC, UL Listed Type FT4 per UL 444

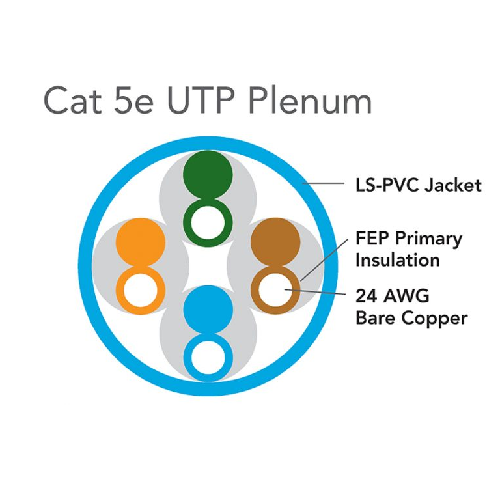

   • Plenum - Low Smoke Flame Retardant PVC, UL Listed Type FT6 per UL 444

Category 5e Electrical Characteristics:

• Characteristic Impedance: 100 ± 15Ω (.772 to 100 MHz)
• Maximum Conductor Resistance: 9.38Ω / 100 Meters @ 20° C
• Maximum Resistance Unbalanced: 5%
• Maximum Mutual Capacitance: 5.6 nF/100 Meters @ 1kHz
• Maximum Capacitance Unbalanced: 330 pF/100 Meters
• Maximum Delay Skew: 45 ns/100 Meters
• Nominal velocity of propagation (NVP): CMR 70%; CMP 72%

STANDARDS:

• ANSI/TIA 568-C.2, CAT5E
• ISO/IEC 11801, 2^nd edition, class E and cat 5e component
• ICEA S-90-661 (Cat 5e)
• NEC/CEC Type CMR (UL 1666) Non-Plenum
• NEC/CEC Type CMP (NFPA 262) Plenum

FEATURES:

• Sweep tested to 350 MHz and compliant to Category 5e ANSI/TIA-568.2-D cable requirements
• Components are twisted into pairs with varying left-hand lays to minimize cross-talk
• Compatible with OCC CAT 5e jacks and patch panels for optimal system performance
• Available in Riser and Plenum, UTP
• REELEX Tangle and Twist-Free Packaging Technology
