Cable Tie Mount Brown PEEK 8 Screw TM2S8-C71 (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Translucent Brown |
| Flammability Rating | UL94V-0 |
| Environment | Indoor |
| Material | PEEK |
| Maximum Operating Temperature (°C) | 260 |
| Maximum Operating Temperature (°F) | 500 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 (M4) |
| Overall Height (In.) | 0.278 |
| Overall Height (mm) | 7.1 |
| Overall Length (In.) | 0.64 |
| Overall Length (mm) | 16.2 |
| Overall Width (In.) | 0.43 |
| Overall Width (mm) | 50.3 |
| Resistance Properties | High Heat Resistant |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| Part No | TM2S8-C71 |
DESCRIPTION :

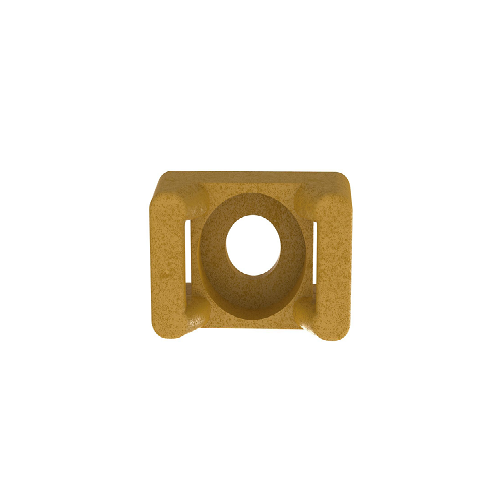

Panduit TM2S8-C71 Screw Applied Cable Tie Mounts are designed for high temperature and harsh chemical environments where the material is required to withstand chemical or radiation exposure. These mounts can be used with Miniature, Intermediate and Standard cross section cable ties. Use with #8 (M4) screws. For indoor use, made of PEEK, are translucent brown in color.
Download PDF Spec Sheet
