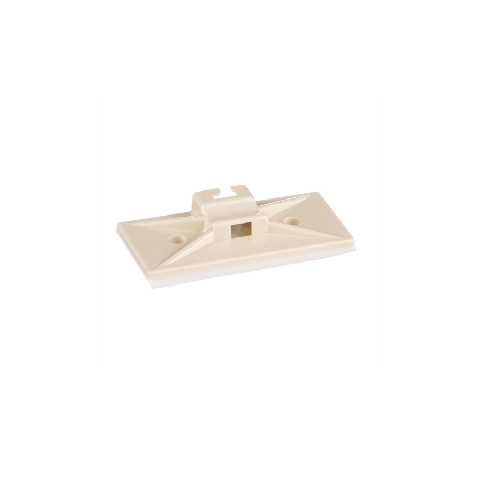

Cable Tie Mount ABS Rubber Adhesive Tape Ivory SMS-A-D15
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
anduit SMS-A-D15 Snap-In Cable Mounts eliminate protruding tie heads and facilitate one hand tie threading. The integral retaining notch allows cable tie heads to be held in place below bundle. Applied with rubber adhesive tape and are designed for use in indoor environments where mounting holes cannot be drilled. They are 0.31” x 2.06” (7.9 x 52.3mm) in size and can be used with standard cross section cable ties. Made of ABS.
Specification :
| Application | Snap-In Cable Tie Mounts – Mechanically Applied, Used with Panduit Standard Cross Section Cable Ties Including Plt1S, Plt1.5S, Plt2S, Prt1.5S And Prt2S. Used to Quickly Route Wire and Cable Where Mounting Holes Cannot be Drilled |
| Product Type | Cable Tie Mount |
| Color | Ivory |
| Environment | Indoor |
| Material | ABS |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.31 |
| Overall Height (mm) | 7.9 |
| Overall Length (In.) | 2.06 |
| Overall Length (mm) | 52.3 |
| Overall Width (In.) | 1.04 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.454 |
| Static Load Capacity (lb) | 1 |
| For Use With | Standard Cross-Section Ties |
Download PDF Spec Sheet
