Cable Mapper and Toner 8 Way CM-8

Product Information

Specification

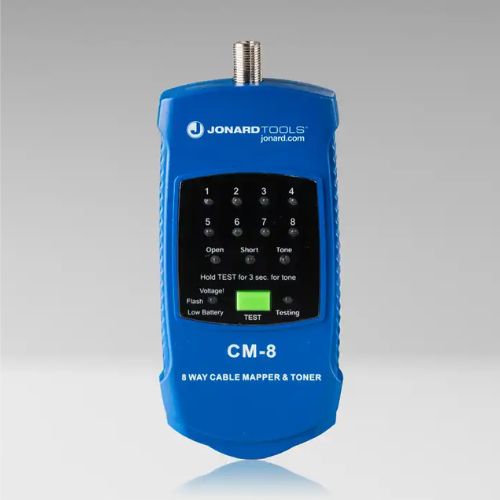

Cable Mapper and Toner 8 Way

Description:

Designed for quickly finding and identifying multiple COAX cables in main cable boxes, this 8-way cable mapper and toner is the perfect tool for use with CATV, network, satellite, audio-video, CCTV, and security & alarm installations.

Features:

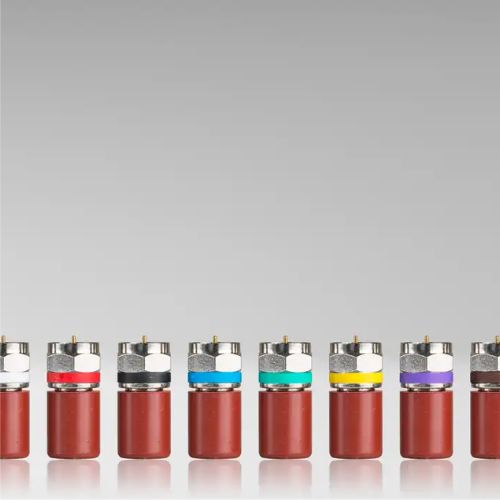

• Eight Numbered & Color-Coded Cable Identifiers: #1 White, #2 Red, #3 Black, #4 Blue, #5 Green, #6 Yellow, #7 Purple, #8 Brown
• Built-in Tone Generator: Easily identifies open and short circuits

• Auto Power-Off:
– 30 minutes in "Tone" mode
– 12 seconds after pass/fail results
• Tests for Opens and Shorts to ensure accurate cable verification
• Maximum Cable Length: Up to 4,000 feet (1,219 meters)
• Maximum DC Cable Resistance: 100 Ohms
• Live Voltage Detection for added safety
• Low Battery Indicator Light alerts users to replace batteries
• Power Source: Two 3V CR2032 batteries (included)

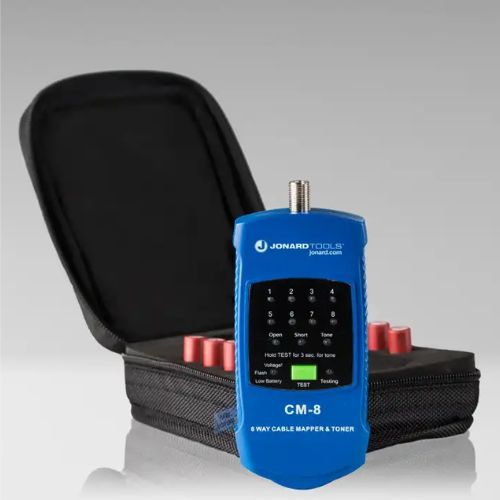

Kit Includes:

• 8-Way Cable Mapper and Toner
• Rugged nylon carrying case
• (2) Alligator clip sets
• Instruction sheet
• CMI-SET8 – Set of 8 replacement cable identifiers
