Cable Lashing Bar Kit for Evolution Vertical Cable Manager CPI 35473-001

Product Information

Specification

Cable Lashing Bar Kit for Evolution Vertical Cable Manager CPI 35473-001

Description:

Cable Lashing Bar Kit provides tie points for the cable inside Evolution Vertical Managers. Use up to six cable lashing bars (front/rear) in 6"W (150 mm) vertical cable managers and up to ten (front/rear) in the 8"W (200 mm), 10"W (250 mm), 12"W (300 mm), and 15"W (380 mm) vertical cable managers. Each kit includes four round .23" (5.7 mm) diameter 20.6"L (524 mm) steel lashing bars and mounting hardware.

Features & Benefits:

• Use with any height Evolution Vertical Cable Manager

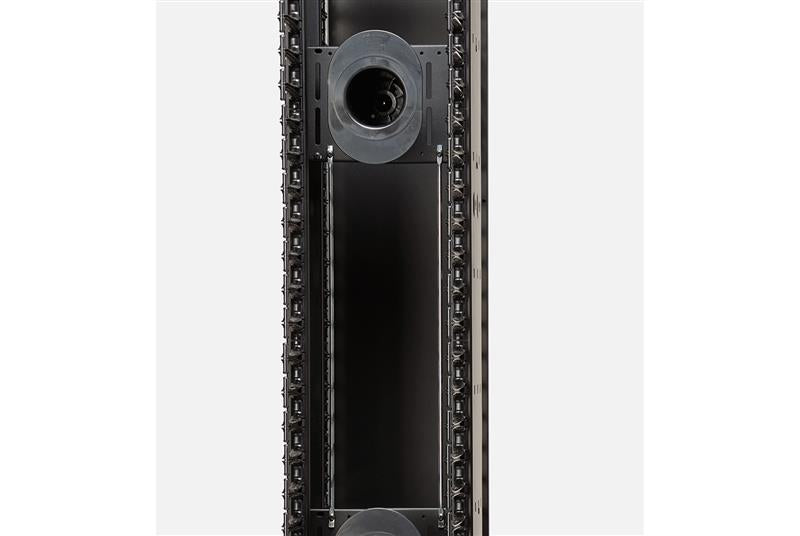

• Attaches to the fixed adapter panel inside single-sided vertical managers and the Movable Mid-Sections inside double-sided vertical cable managers

• Use up to six cable lashing bars (front/rear) in 6”W (150 mm) vertical cable managers and up to ten cable lashing bars (front/rear) in 8”W (200 mm), 10”W (250 mm), 12”W (300 mm) and 15”W (380 mm) vertical cable managers

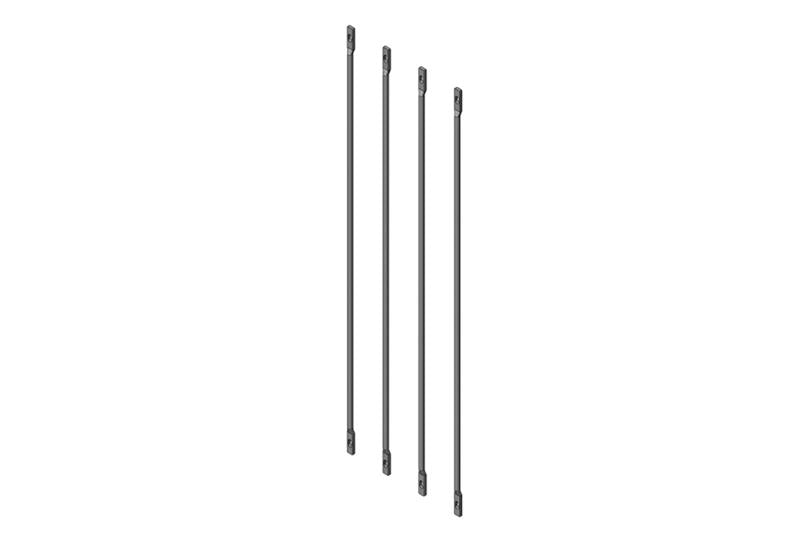

• Each kit includes four round .23” (5.7 mm) diameter x 20.6”L (524 mm) steel lashing bars and mounting hardware
