Product Information
Specification
| Design specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Enclosure protection | IK10 to IEC 62262 (20 joules) Brass and Stainless Steel only |
| Cable gland material | Stainless Steel |
| Seal material | CMP SOLO LSF Halogen Free Thermoset Elastomer |
| Size | 20' |
| Type | TE1FU |
| Metric | M20 |

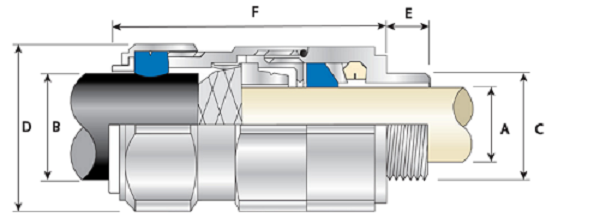

| Thread Length (metric) 'e' | 15.0 |
| Thread length (NPT) 'e' | 19.9 |
| NPT | 3⁄4" |
| Cable bedding Diameter 'a' | MIN- 6.5 , MAX - 13.9 |
| Overall cable Diameter 'b' | MIN - 12.5 , MAX - 20.9 |
| Armour range | GROOVED CONE (X) - 0.4 , STEPPED CONE (W) - 0.8 |
| Across Flats 'd' | 30.5 |
| Across Corners 'd' | 33.6 |
| Protrusion Length 'f' | 61.2 |
| SHROUD | PVC06 |
| Part Number | 20TE1FU1RA432 |
CABLE GLAND, TE1FU EXPLOSIVE ATMOSPHERE, PVC06 SHROUD - 20TE1FU1RA432
Key Features:
- Stainless steel compact design
- Fully sequential, three step
- installation procedure
- Direct and remote installation
- Unique compensating
- displacement seal system(CDS)
- Metal-to-metal installation
- regardless of cable bedding diameter
- Integral protected deluge seal
- -60 ̊C to +130 ̊C
- Designed to reduce the effects of coldflow, see CMP Technical
- Document TS002
- Controlled outer load retention seal
- Unique OSTG prevents
- overtightening
- Globally marked cCSAus, IECEx,
- ATEX and UKEX
- Superior EMC performance
- Reduces installation times, cost and risk
