Cable Fittings And Accessories FMM63-CV
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Fittings |

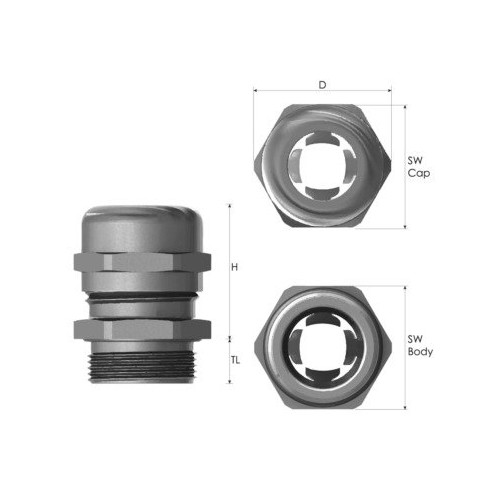

| Clamping range D | 34 mm – 44 mm |
| Clamping range D | 1.457 inch – 2.087 inch |
| Temperature Range | -20 °C … +100 °C |
| Intermittent Temperature Range | -40 °C … +150 °C |
| Degree of Protection | IP68 |
|
Material |
Brass Nickel-plated |
| Material Seal | CR Chloroprene Rubber |
| Surface | Nickel-plated |
| Part No | FMM63-CV |

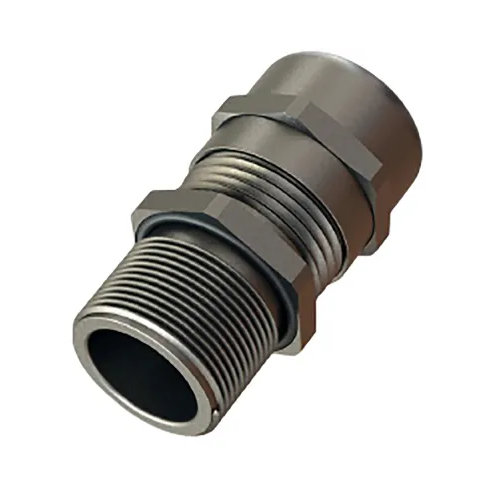

Cable Fittings And Accessories FMM63-CV
Description:
Cable Fittings and Accessories Metal EMC ,TOP-T EMC Metal M40×1.5
Properties:
⦿ Adapts to different size cable shields
⦿ 360° vibration proof shield termination
⦿ Integrated strain relief
⦿ Wide sealing and clamping range
⦿ Updated design for easy installation
⦿ Easy insertion of the cable from either end of the fitting
⦿ Low contact resistance due to large alloy copper contacts
⦿ Manufactured acc. to EN 62444
