Cable Cleat Bracket U Channel Rung UC Series UCUC1-V316

Product Information

Specification

About:

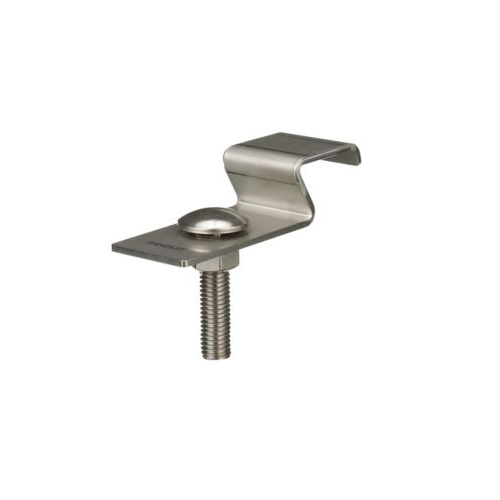

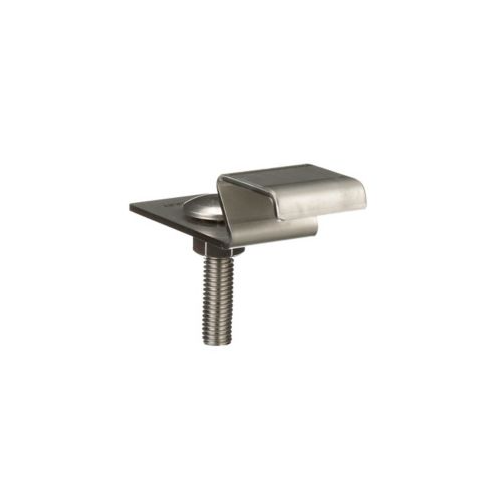

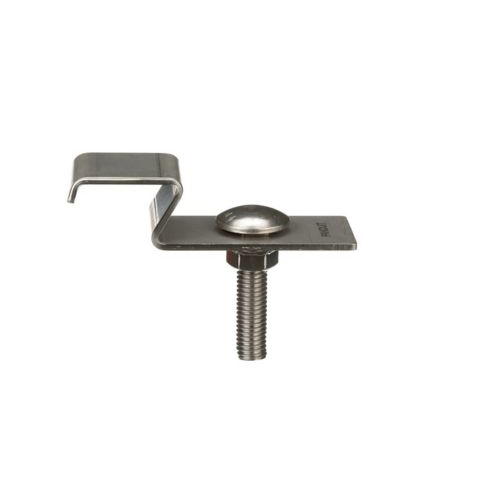

• The UCUC1-V316 Uniclip bracket is designed for use with metal locking strap and buckle strap cable cleats to allow cable cleat installation on slotted cable tray.
• The bracket aids to eliminate diagonal installations and high resistance to lateral and axial movement.
• The bracket is compatible with U-channel type cable ladder rungs in galvanized steel, stainless steel, and aluminum constructions.
• Features 316 SS material and includes bracket, carriage bolt, and serrated flange nut.

Also Known As:

U Channel Cable Cleat Bracket, U Channel Cable Bracket, U Channel Rung Cable Bracket, U Channel Rung Cable Cleat, Cable Cleat Bracket U Channel Rung.

Specification:

• Product Type: Uniclip Bracket
• Environment: Indoor/Outdoor
• Material: Stainless Steel Type 316
• Overall Height (In.): 0.82
• Overall Height (mm): 20.9
• Overall Length (In.): 3.49
• Overall Length (mm): 88.7
• Overall Width (In.): 1.25
• Overall Width (mm); 31.7
• Color: Natural
• UPC: 61305675592

Features:

• The U channel design provides a robust and secure support structure for cables, ensuring they stay in place and are properly aligned.
• Part of the UC Series, which is known for its compatibility with a wide range of cable management systems and accessories.
• Easy to install with standard hardware, minimizing installation time and labor costs.
• Simplifies the installation and maintenance process, saving time and labor costs.
