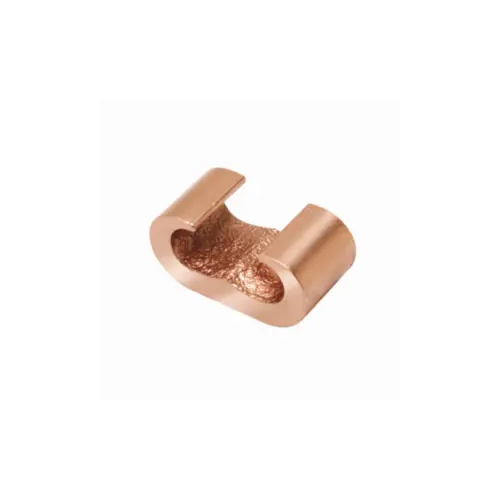

Burndy Copper Crimpit Compression Connector YGHC29C26
Description :
• Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 6 AWG(Sol) - 2/0 AWG(Str) (Tap).
• Features: Irreversible Compression Ground Tap Figure C Connectors, Accommodates All Cable Combinations From #6 AWG Solid Through 500 KCMIL, C- Shaped Opening Permits Placing Two Continuous Parallel Cables Into Conductor Groove, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Certain Sizes Are Also UL467 Listed And CSA Certified For Wire To Ground Rod, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), Die Index: 997 Element A, Conductor Size (tap - Mm): 10 - 70 SQ-MM, Ground Rod Size: 1/2 - 5/8 IN, Conductor Size (run - Mm): 95 - 120 SQ-MM, Conductor Type: Run: Commercial Stranded Copper, Metric Copper, Tap: Commercial Stranded Copper, Metric Copper, Shape: C, Conductor Size (tap Range): 6 - 2/0 AWG, Conductor Size (run - Range): 3/0 AWG - 250 KCMIL
Specifications :
| Application | For Direct Burial Cables |
| Connector Type | Tap |
| Die Index | 997 |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Physical Attribute - Number of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | HYGROUND, HYTAP |
| Trade Name | HYLUG™ |
| Type | Taps |
| UPC | 781810221044 |
| Dimension - B Length fraction | 0.75 in |
| Dimension - B Length inch | 0.75 in |
| Dimension - Height fraction | 1-32/33 in |
| Dimension - Height inch | 1.97 in |
| Dimension - L Length Overall mm | 19 mm |
| Dimension - Length Overall inch | 0.75 in |
| Conductor - Copper Solid Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG |
| Conductor - Copper Solid Tap Range | 6 AWG-3/0 AWG |
| Conductor - Copper Str Run | 3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Run Range | 3/0 AWG-250 kcmil |
| Conductor - Copper Str Tap | 7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Tap Range | 7 AWG-2/0 AWG |
| Conductor - Rod Run | 1/2 in;5/8 in |
| Conductor - Rod Run Range | 1/2 in-5/8 in |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) | Direct Burial |
| Standards - Industry Standards Met | UL467;IEEE 837;UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
