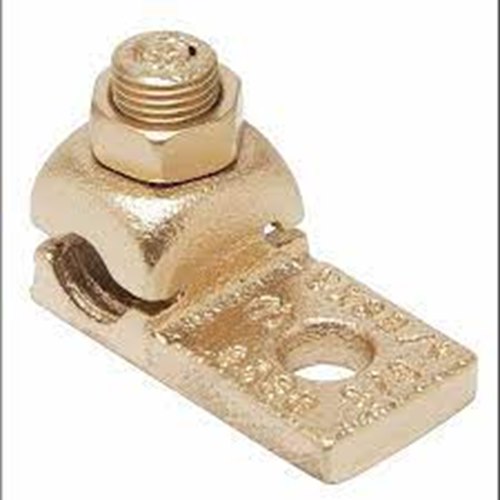

BURNDY 4AWG COPPER 1-HOLE TERMINAL LUG - QA4CB
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Connector Type | Single Clamp |
|
Installation Torque Recommended in-lb |
110 LBS/in |
|
Physical Attribute - Number of Screws |
1 |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
|
Conductor - Copper Str Navy Size |
23 (7) Navy;30 (19) Navy;40 (19) Navy |
| Plating Type | Un-Plated |
| Trade Name | QIKLUG |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 8-4 AWG |
| Part Number | QA4CB |
Dimensions:-
| Bolt Size fraction | 1/4 |
| Height fraction | 3/4 |
| Height inch | 0.75 in |
| Hole Size fraction | 9/32 |
| Hole Size inch | 0.28 in |
| Stud Size inch | 1/4 |
| N inch | 0.31 in |
Description :-
Copper Alloy Material; 1.44 Inch Overall Length; 8 AWG Stranded, 23 Navy min. Conductor Size; 4 AWG Stranded, 40 Navy Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B Approval; 1/4 Inch Stud Size.
Application :-
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
Technical Drawing :-
Download PDF Spec Sheet
