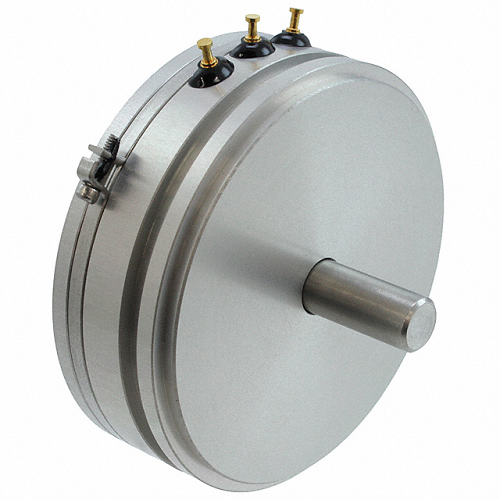

Precision Potentiometer BOURNS 6574S-1-202
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Standard Resistance Range | 1 K to 100 K ohms |
| Operating Temperature Range | -40 °C to +125 °C |
| Wiper Bounce | 0.1 millisecond maximum |
| Rotational Life (No Load) | 25,000,000 shaft revolutions |
| Mechanical Angle | Continuous |
| Shaft Runout | 0.025 mm (0.001 in.) T.I.R. |
| IP Rating | IP 40 |
| Sea Level | 1,000 VAC minimum |
| Insulation Resistance (500 VDC) | 1,000 megohms minimum |
| Part Number | 6574S-1-202 |
Descripton:
Res POT 2K Ohm 10% 2W 1(Elec)/1(Mech)Turns 6.34mm (31.12 X 50.8 X 54.99mm) Turret Servo Mount.
Features:
- Servo mount style
- Shaft supported by front and rear precision ball bearings
- Non-standard features and specifi cations available
- Gangable up to 10 cups
