| Type | BNC Straight Adapter |
|---|---|
| UPC | 810053351697 |
| Total Length | 5.6" |
| Connector Type | BNC Female Splice Adapter |
| Standards | IEC 60169-8 |
| Tempertaure Range | -25～+85℃ |
| Working Voltage | 500 V |
| Withstand Voltage | 1500 V |
| Center Contact Resistance | ≤ 1.5 mΩ |
| Outer Contact Resistance | ≤ 1 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.3 |
| Insertion Loss | ≤ 0.5 dB |
| Dimensions | 0 in x 0 in x 0 in |
| Part Number | BNC-SA |

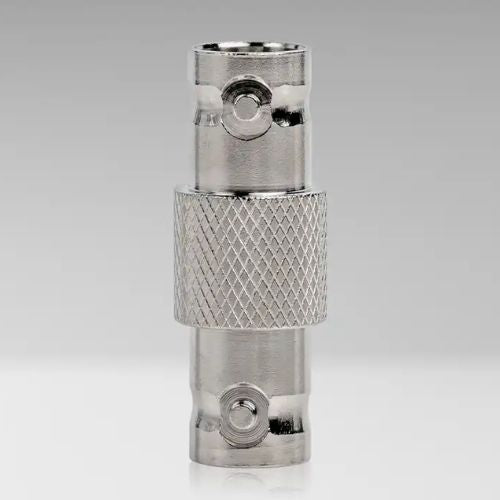

BNC Straight Adapter
Description:
These adapters allow two BNC connectors to be joined together.
Features:
⦿ Compatibility: Designed for use with male BNC plugs/connectors
⦿ Included Component: One (1) BNC adapter included
