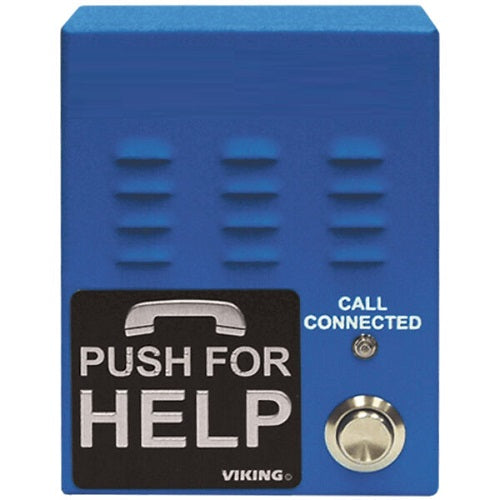

Viking E-1600-60-IPEWP – Blue VoIP Emergency “Police” Phone with Enhanced Weather Protection
About :
The E-1600-60-IPEWP ADA and CE Compliant Blue VoIP Emergency “Police” Phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-1600-60-IPEWP phone meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone, PC on the same LAN, or remotely using a static IP address. The blue VoIP emergency “police” phone can dial up to 5 programmable emergency numbers.
Also Known As :
Emergency Phone, Emergency Call Box, Hotline Phone, Help Point Phone, Hotline Phone
Specification :
|
Door Phone Type |
Emergency, Outdoor, Push Button |
| Power | PoE class 1 (<4 Watts) |
| Humidity | Up to 100% |
| Material | 16 gauge steel with textured blue powder paint |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Mounting | Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxesrecess mount in elevator phone boxes |
| Connections |
(1) RJ45 10 / 100 Base-T, (3) gel-filled butt connectors |
Core Features :
• Automatic polling and programming software included
• 2 Amp relay contacts to control an SL-2 Strobe Light (DOD 242) or LV-1K Line Verification Panel (DOD 246)
• Red “Call Connected” LED indicator
• SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• VoIP audio detection eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• Handsfree operation
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Programmable to dial up to 5 numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Diagnostics for testing mic, speaker, relay
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
• Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
