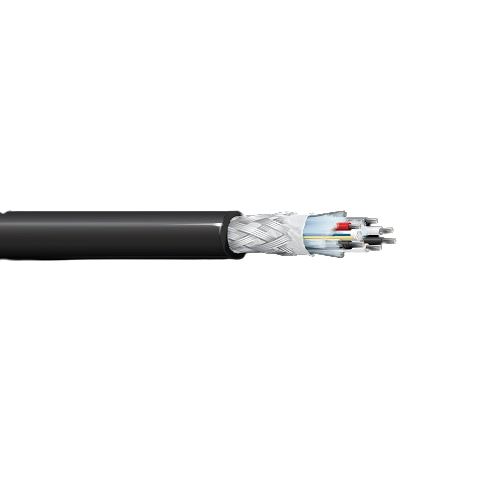

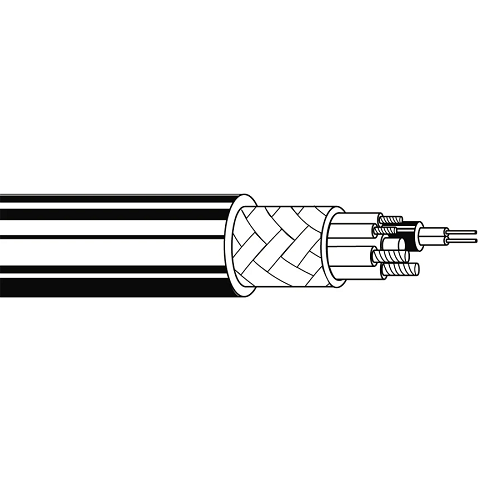

Belden 7804C 24 AWG 2 Conductor 16 AWG 2 Conductor 2 Fiber SMPTE 311M Cable
Description:-
Heavy Gauge SMPTE 311M HDTV, 2 Single Mode fibers, 2 TC Conductors 24 AWG stranded (7x32) and 2 TC Conductors 16 AWG stranded (65x34), PVC insulation, TC braid shield (95% coverage), CMR rating, Belflex jacket.
Product Overview:-
• Product Category: SMPTE Cable
• Suitable Applications: SMPTE 311M HDTV Cable
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.362 in (9.19 mm)
Standards:-
• Operating Temperature Range: -40°C to 70°C
Specifications:-
• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 65x34
• Conductor Material: TC - Tinned Copper
• Fiber Count: 2
• Fibers Per Subunit: 1
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7804C
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
