Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable

Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable
Roll over image to Zoom
Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable
Roll over image to Zoom
Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC5201UE
belden-multi-conductor-cmr-riser-unshielded-300v-commercial-audio-system-cable

Select a Gauge

Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$0.74 /FT
$0.74 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 5201UE 16 AWG 3 Conductor 19x29 Stranding Bare Copper 300V Security and Commercial Audio Cable

Description:

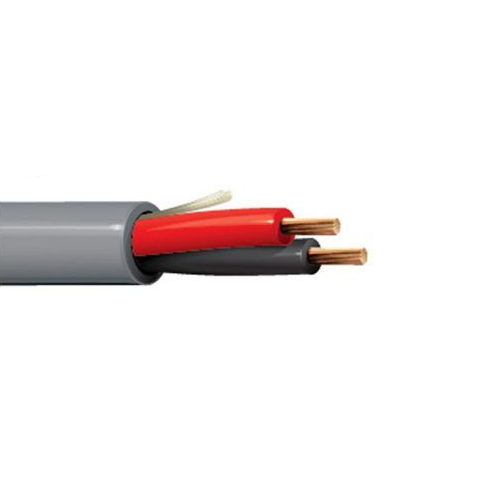

Security and Commercial Audio Cable, Riser-CMR, 3-16 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.191 in (4.85 mm)
• Overall Cable Diameter (Nominal): 0.191 in (4.85 mm)

Standards:

• Voltage Rating: 300 V (CMR)
• Operating Temperature: -20°C to +75°C

Applications:

• Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:

• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 5201UE

Manufacturer Equivalents
Belden : Gray : 5201UE 0081000
General Cable : Gray : E1043S
Omni Cable : Gray : BEL5201UE
Wirexpress : Gray : B5201UE-1000
Omni : Gray : BEL5201UE

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
