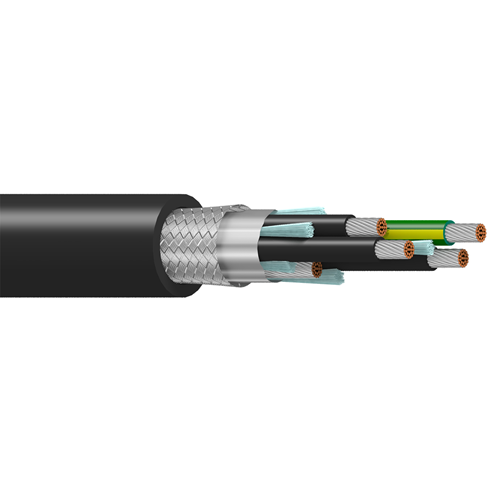

Belden 29500T 16 AWG 3 Conductor 26x30 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 16AWG (26x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/16AWG Tinned Copper Drain, Black LSZH Outer Jacket, 600V TC-ER-LS 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC SUN RES DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.046 in (1.2 mm)

Element: Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.046 in (1.2 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.534 in (13.6 mm)
• Overall Cable Diameter (Nominal): 0.534 in (13.6 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Human safety applications with flame or toxicity concerns (low smoke, zero halogen)

Specifications:

Element: Conductor(s):-
• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper

Element: Ground:-
• Size (AWG): 16
• No. of Elements: 1
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper
• Part Number: 29500T

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
