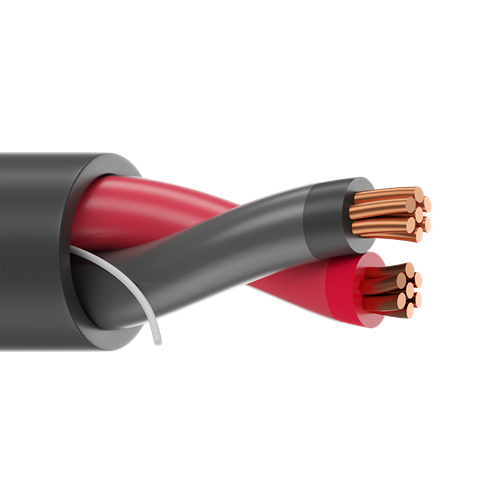

Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable

Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable
Roll over image to Zoom
Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable
Roll over image to Zoom
Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC27917A
belden-multi-conductor-unshielded-bc-pvc-nylon-insulation-600v-type-tc-cable

Select a Gauge

Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$0.55 /FT
$0.55 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 27917A 16 AWG 2 Conductor 7x24 Stranding Bare Copper 600V Type TC Cable

Description:

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 16 AWG (7x24) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Wet/Dry SUN RES DIR BUR.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Insulation Diameter: 0.099 in (2.5 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.197 x 0.298 in
• Overall Cable Diameter (Nominal): 0.197 x 0.298 in

Standards:

• Voltage Rating: 600 V (TC), 150 V (NPLF)
• UL Voltage Rating: 90°C Dry, 90°C Wet
• Operating Temperature: Wet/Dry: -30°C to 90°C

Applications:

• Power and Control Applications up to 600V

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 7x24
• Conductor Material: BC - Bare Copper
• Part Number: 27917A


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
