Belden 1523R 14 AWG 1 Conductor Solid Series 11 75 Ohm Broadband Coax Cable

Name: Belden 1523R 14 AWG 1 Conductor Solid Series 11 75 Ohm Broadband Coax Cable
Brand: Belden Cable
SKU: NNC1523R
Price: 0.55 USD
Availability: InStock
Rating: 4.91 (8330 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC1523R

Select a Gauge

Belden 1523R 14 AWG 1 Conductor Solid Series 11 75 Ohm Broadband Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.55 /FT
Sale price: $0.55 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

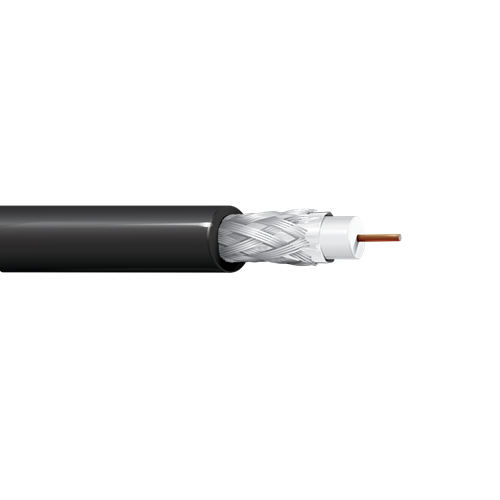

Belden 1523R 14 AWG 1 Conductor Solid Series 11 75 Ohm Broadband Coax Cable

Description:

Broadband Coax, Series 11, 14 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.280 in (7.11 mm)

Outer Shield:

• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage [%] 100%

• Layer 2: Type Braid, Aluminum Material, Coverage [%] 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.400 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

Applications:

• Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Specifications:

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.064 in
• Impedance: 75 Ohm
• Series Type: 11
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1523R

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
