Belden 1502R 22 AWG 1 Pair 7x30 Stranding 18 AWG 2 Conductor 16x30 Stranding Multimedia Control Cable
Description:
Multimedia Control Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with FPE insulation, Beldfoil shield w/ drain, 2 Conductor 18 AWG stranded (16x30) tinned copper conductor (power) with F-R PVC insulation, Riser, F-R PVC jacket.
Insulation:
Element: Pair(s):-
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Insulation Diameter: 0.079 in (2.0 mm)
Element: Conductor(s):-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)
Inner Shield:
• Outer Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.039 in (0.99 mm)
• Nom. Diameter: 0.25 in (6.4 mm)
• Overall Cable Diameter (Nominal): 0.25 in (6.4 mm)
Applications:
• Multi-Media and Lighting Automation / Control, AMX and Crestron Control Systems
Specifications:
Element: Pair(s):-
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
Element: Conductor(s):-
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1502R
Element: Pair(s):-
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
Element: Conductor(s):-
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1502R
|
Manufacturer Equivalents |
|
| Belden : | Black : 1502R 0101000 |
| Omni Cable : | Black : BEL1502R |
| Wirexpress : | Black : B1502R |
| Omni : | Black : BEL1502R |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
Reviews
Related products
Belden 8241 23 AWG 1 Conductor Solid RG-59 Analog Video 75 Ohm Coax Cable
- Sale price
- $0.72
- Regular price
- $0.72
Belden 1300A 24 AWG 4 Pair Solid Category 5e Wireless LAN Cable
22%off
- Sale price
- $0.76
- Regular price
- $0.98

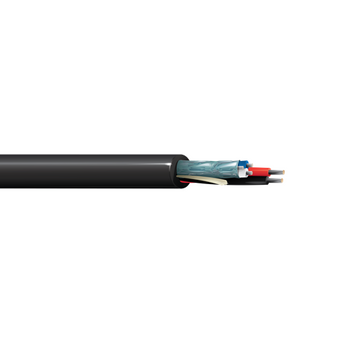

Belden 1502P 22 AWG 1 Pair 7x30 Stranding 18 AWG 2 Conductor 19x30 Stranding Multimedia Control Cable
