Belden 1348A 20 AWG 3 Conductor 7x28 Stranding Bare Copper CC Link Cable

Name: Belden 1348A 20 AWG 3 Conductor 7x28 Stranding Bare Copper CC Link Cable
Brand: Belden Cable
SKU: NNC1348A
Price: 3.61 USD
Availability: InStock
Rating: 4.91 (8370 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC1348A

Select a Gauge

Belden 1348A 20 AWG 3 Conductor 7x28 Stranding Bare Copper CC Link Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $3.61 /FT
Sale price: $3.61 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

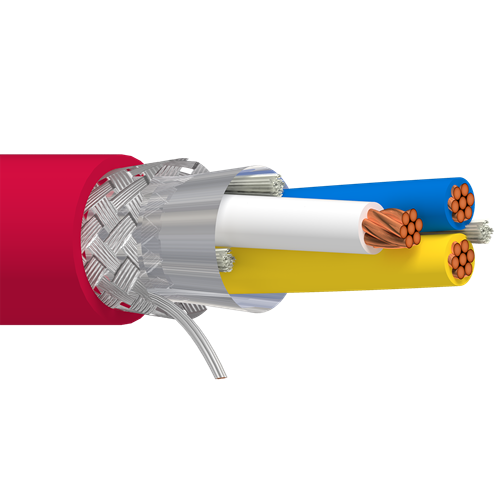

Belden 1348A 20 AWG 3 Conductor 7x28 Stranding Bare Copper CC Link Cable

Description:

CC Link, 3 Conductor 20AWG (7x28) Bare Copper, FPE Insulation, Overall Beldfoil+Tinned Copper Braid(78%) Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Insulation Diameter: 0.094 in (2.4 mm)

Outer Shield:

• Shield Type Tape, Bi-Laminate (Alum+Poly) Material, Coverage 100%, Drainwire Type 22 AWG (19x34) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 78%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.303 in (7.70 mm)
• Overall Cable Diameter (Nominal): 0.303 in (7.70 mm)

Applications:

• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc
