Anaerobic Connector FC Single-mode (OS2) Field-Installable Connectors White Individual Pack CORNING-C 95-201-61-SP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Number : | 95-201-61-SP |
| EAN Code: | 4056418201252 |
| Fiber Category : | Single-mode (OS2) |
| Product Type : | Field-Installable Connectors |
| Corning Logo : | Yes |
| Keyed (security) : | No |
| Technology: | Field Polish (anaerobic) |
| RoHS: | Free of hazardous substances according to RoHS 2011/65/EU |
| Temperature Range: | -40 °C to 75 °C (-40 F to 167 F ) |
| Connector Type: | FC |
| Housing Color: | Metal |
| Housing Material: | Metal |
| Boot Color: | White |
| Insertion Loss: | 0.75 dB |
| Reflectance: | ≤ -40 dB |
| Insertion Loss: | ≤ 0.1 dB |
| Packaging: | Individual Pack |

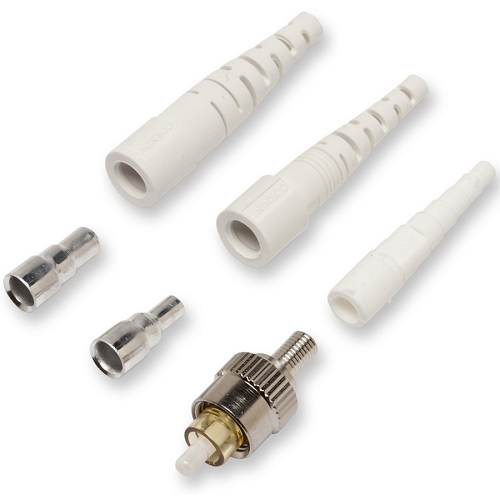

| Package Contents: | Connector, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm) |
| Units per Delivery: | 1/1 |
Anaerobic Connector FC Single-mode (OS2) Field-Installable Connectors White Individual Pack CORNING-C 95-201-61-SP
Description:
• Corning anaerobic-cured connectors offer optical performance in a fast, easy field-termination solution designed for fiber-to-the-workstation applications for single mode and multimode connections. This connector combines the quick-cured convenience of anaerobic adhesive with the performance of epoxy-and-polish connectors. Ideal for enterprise networks and any installations requiring field-installed connectors, the anaerobic-cured technology enables fiber optic networks to be installed cost-effectively with minimal tools.
• Installation of the connector can be accomplished in minutes with the anaerobic adhesive two-part epoxy process. The adhesive is first injected into the connector ferrule, and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand-polish process, an average insertion loss of 0.2 dB is achieved.
Feature/Benefits
• Quick-cure epoxy
No lamps or ovens needed
• Minimal tools and no index-matching gel
Low installation cost
• Hand polished for minimum insertion loss
Reliability and optical performance
• Twelve color-coded mechanical key positions
Prevents mismatch of networks
• Keyed connector solution
Front and rear security in network panel
Download PDF Spec Sheet
