ALTOS Lite Loose Tube 72 F Gel-Free Single-Jacket Single-Armored Cable 072EUC-T4101D20

About :

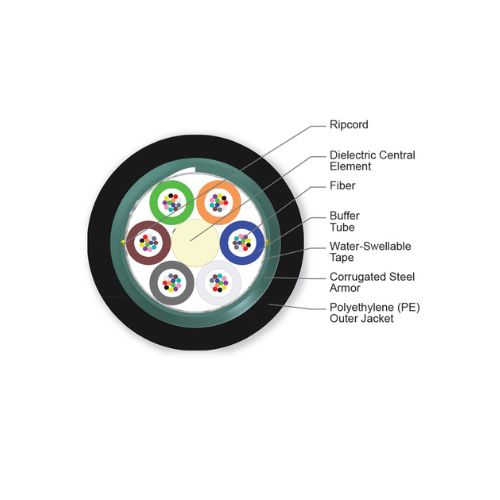

Corning ALTOS Lite gel-free, single-jacket, single-armored cables are designed for campus backbones in direct-buried installations. The loose tube design provides stable and highly reliable transmission parameters for a variety of voice, data, video and imaging applications. These cables also provide high-fiber density within a given cable diameter while allowing flexibility to suit many system configurations. The single armored construction provides additional crush and rodent protection with a high-strength ripcord under the armor for easy stripping. Gel-free means the cables are fully waterblocked using craft-friendly, water-swellable materials which make cable access simple and require no clean up. The flexible, craft-friendly buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy mid-span access. These cables have a medium density polyethylene jacket that is rugged, durable and easy to strip.

Specifications :

Product Number : 072EUC-T4101D20
EAN Code : 4056418185125
Cable Type : Loose Tube
Environment : Outdoor
Product Type : Dielectric armor
Fiber Category : Single-mode (OS2)
Application : Aerial,  Direct Buried,  Duct
Fiber Count : 72
Cable geometry : Round
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Fiber Code : E
Fiber Name : Single-mode (OS2)
Fiber Type : Single-mode
Performance Option Code : 01
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D

Features :

• Craft-friendly cable preparation

• Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)

• Provides rodent resistance for direct-buried applications
