ALTOS Gel-Free All-Dielectric Cable FastAccess Technology 36 F Ultra Fiber Single-Mode 036ZU4-T4722D20

Product Information

Specification

About :

Corning ALTOS cable with FastAccess technology is an all-dielectric gel-free cable designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations. The innovative FastAccess technology feature combined with the all-dielectric gel-free loose tube design simplifies removal of the cable jacket reducing cable end access time by at least 50 percent. Equally important is the overall reduction in risk of inadvertent fiber damage and risk to installers from sharp cable access tools. The cable is fully waterblocked using craft-friendly, water-swellable materials, which means no clean up is required. The flexible buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy mid-span access. The all-dielectric gel-free cable construction requires no bonding or grounding, and these cables have a medium-density polyethylene jacket that is rugged, durable and easy to handle. A variety of fiber types are available including 62.5 µm and 50 µm, single-mode and hybrid versions, as well as fibers with Gigabit and 10 Gigabit Ethernet performance.

Specifications :

Product Number : 036ZU4-T4722D20
Environment : Outdoor
Cable Type : Loose Tube
Product Type : Dielectric
Fiber Category : SMF-28 Ultra fiber
Application : Aerial,  Duct
Fiber Count : 36
RoHS : Free of hazardous substances according to RoHS 2011/65/EU

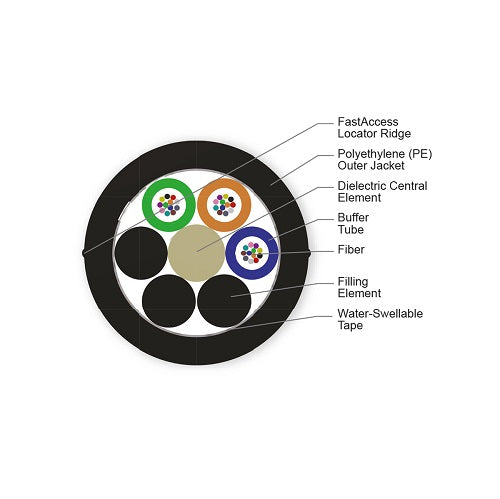

Central Element : Dielectric
Fiber Count : 36
Outer Jacket Color : Black
Outer Jacket Material : Polyethylene (PE)
Buffer Tube Color : Blue, Orange, Green
Buffer Tube Diameter : 2.5 mm (0.1 in)
Number of Active Tubes : 3
Number of Filling Elements : 3
Number of Tube Positions : 6
Tape : Water-swellable
Fiber Coloring : Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube : 12
Color Code Standards : Telcordia
Fiber Code : Z
Fiber Name : SMF-28 Ultra fiber
Fiber Type : Single-mode
Performance Option Code : 22
Maximum Attenuation : 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
Typical Attenuation : 0.32 / 0.32 / 0.18
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D/G.657.A1

Features :

• Innovative cable jacket feature reduces cable end access time, reduces overall risk of inadvertent fiber damage, as well as, risk to installers from sharp cable access tools

• Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)

• Simple access and no clean up

• Meets the requirements of Telcordia GR-20, Issue 3 and ICEA S-87-640

• Ready for any application including Gigabit Ethernet and 10 Gigabit Ethernet
