Alpha Wire Multi Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable

Name: Alpha Wire Multi Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable
Brand: Nassau National Cable
SKU: NNC15841X
Availability: InStock
Rating: 4.89 (8742 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC15841X

Select a Gauge

Alpha Wire Multi Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name Alpha Wire 3492C 28 AWG 2 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $8.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3493C 28 AWG 3 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $4.13 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3494C 28 AWG 4 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $11.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3495C 28 AWG 5 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $10.33 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3496C 28 AWG 6 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $10.36 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3498C 28 AWG 8 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $8.79 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3500/12C 28 AWG 12.5 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $16.93 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 3500/18C 28 AWG 18 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $15.59 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6222C 24 AWG 2 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $2.39 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6223C 24 AWG 3 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $2.63 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6224C 24 AWG 4 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $3.39 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6225C 24 AWG 5 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $4.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6226C 24 AWG 6 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $4.36 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6227C 24 AWG 7 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $5.88 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6228C 24 AWG 8 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $7.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6230C 24 AWG 10 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $6.99 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6230/12C 24 AWG 12.5 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $7.19 Available Min: 1 FT Max: 1000000 FT	Action
Product Name Alpha Wire 6230/15C 24 AWG 15 Pair 300V Foil Braid FPP Insulation Communication Control Industrial Cable	Length /FT	Price (Per FT.) $10.23 Available Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

Minimum 100 Feet

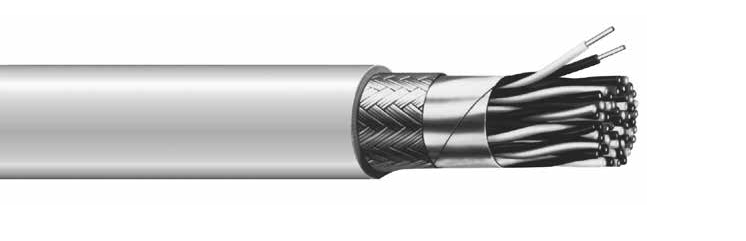

Communication and Control 300 V Overall Foil/Braid Shield, Multipair, FPP, PVC Low Capacitance Data Cable

Operating Temperature:

• -20°C to +80°C (AWM)
• -20°C to +75°C (CL2)
• -20°C to +60°C (CMG)

Conductor Color Coding:

• Chart M (page 530)

Materials:

• Stranded tinned copper conductors
• Foam polypropylene insulation
• Foil + braid shielding Aluminum/polyester foil shield, 25% overlap min. Foil facing outward Stranded tinned copper drain wire equal in size to conductor Tinned copper braid, 65% coverage
• Slate PVC jacket

Availability:

100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
