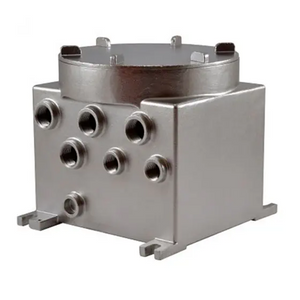

AISI 316L Stainless Steel Communication Box MBX1MAA

Product Information

Specification

AISI 316L Stainless Steel Communication Box MBX1MAA

Also Known As:

Communication Box, AISI 316L Stainless Steel Construction, MBX1MAA

About:

Explosion-Proof Communication Box, Indoor or Outdoor Use: Outdoor, Operating Temperature - Maximum: 80 C, Material: 316 Stainless Steel, Voltage Rating: 230/24 VAC, The MAXIMUS MBX is a versatile communication box designed for seamless integration with IP or analogue cameras from the Videotec MAXIMUS range. This device allows for the connection of a 24Vac-powered PTZ camera and its washing kit or up to two fixed cameras with washing kits. The MAXIMUS MBX provides low-voltage local power supply to connected devices and ensures reliable communication with its integrated Fast Ethernet switch. The switch features three RJ45 ports and an SFP port, enabling both copper and fibre optic connections for flexible network integration. Ideal for demanding surveillance setups, the MAXIMUS MBX offers efficient connectivity and power management in harsh environments.

Features:

• AISI 316L stainless steel construction
• 2 bypass for analog video signals with BNC connectors
• 2 bypass for I / 0 signals with multi-pin connectors
• Designed to work exclusively with Videotec products and accessories
• Certifications for use in Zones 1 and 21IC Group (Gas) and in Zones 21 and 22 IIIC Group (Dust); ambient temperature up to +80°C (+176°F)

Specifications:

• Material: 316 Stainless Steel
• Product Type: Communication Box
• Part Number : MBX1MAA
