92x25mm Dual Ball Bearing Computer Case Fan With LP4 Power Connector

Product Information

Specification

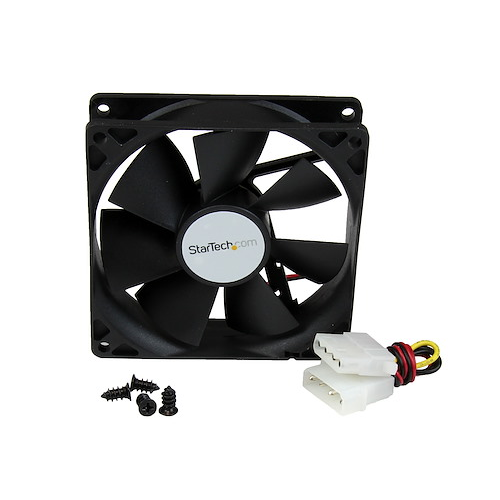

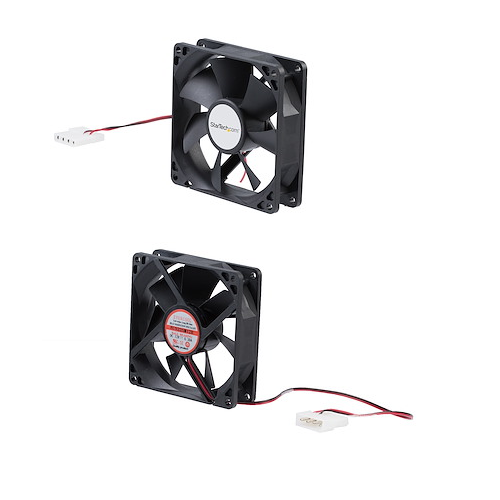

92x25mm Dual Ball Bearing Computer Case Fan With LP4 Power Connector

Applications:

• Replace a noisy or failed computer case fan
• Install into a computer case to increase air flow and cooling

Description:

This 9.2cm x 9.2cm x 2.5cm (3 5/8" x 3 5/8" x 1") Dual Ball Bearing PC case fan is an add-in cooling fan designed to fit most computers. The PC Case fan can be used to circulate cool air into the case or exhaust warm air out, preventing problems due to overheating components. A quiet running brushless ball bearing DC motor coupled with a high efficiency blade design is capable of moving 39.35 CFM (cubic feet per minute) of air. Power is supplied to the fan using a standard LP4 (hard drive power connector) pass through plug.

Features:

• 92mm dual ball bearing fan design
• Inline LP4 power connectors

Advantage:

• A dual ball bearing design ensures reliability and longer life

Connector(s):

• Connector Type(s): 1 - LP4 (4 pin; Large Drive Power), 1 - LP4 (4 pin; Large Drive Power)

Hardware:

• Number of Conductors: 2
• Fan Bearing Type: Ball Bearing

Performance:

• Fan RPM: 2200
• Air Flow Rate: 39.35 CFM
• Noise Level: 26 dBA

Power:

• Input Voltage: 12V DC

Environmental:

• Operating Temperature: -10°C to 80°C

What's in the Box:

• 1 - 92mm Case Fan
• 4 - Mounting Screws
