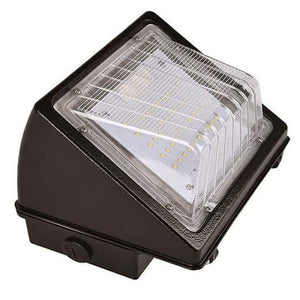

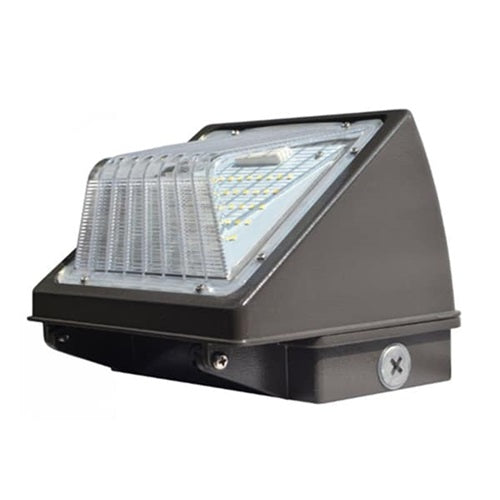

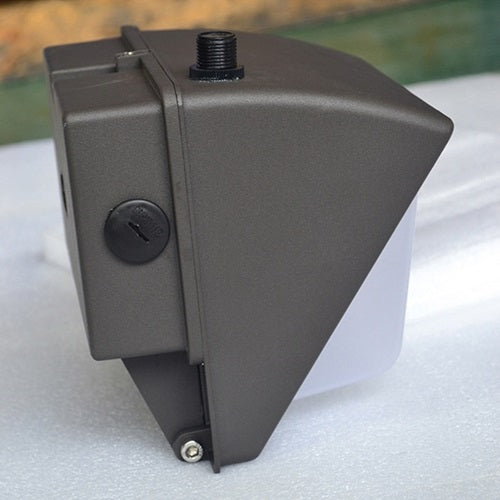

90W LED Wallpack light 10800lm 5000K100-277V 120 degrees Dark Bronze housing Clear cover
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
Below is the HID LED replacement for small watts LED wall pack lights
Application :

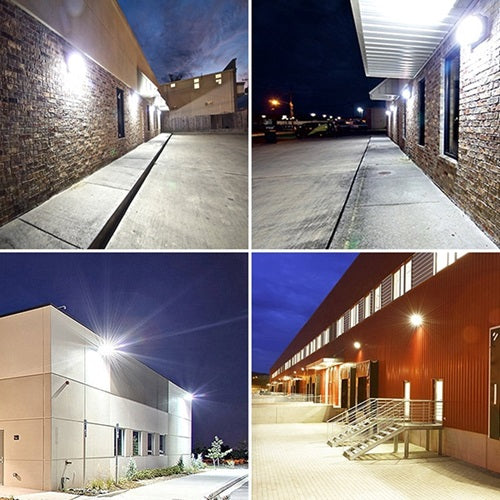

Parking garage lighting, residential and commercial outdoor security lighting such as hospital, school, university and restaurant, underpasses, loading dock, building perimeter, roadway lighting etc.
Specification :
| Watt | 90W |
| Working voltage | 100-277V 50/60HZ |
| Lumen output | 10800lm |
| CCT | 5000K |
| CRI | >80Ra |
| Beam angle | 130deg. (forward throw) |
| HID Replacement | 100-277V |

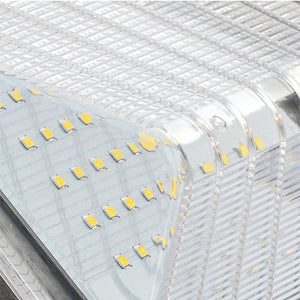

| Chip brand | Philips LumiLids SMD 3030 chips |
| Driver | UL driver |
| Diffuser | Clear |
| THD | <15% |
| PF | >0.97 |
| Waterproof | IP65 waterproof |
| Mounting | Wall mount |
| Body material | Die-casting aluminum & PC diffuser |
| Shell finish color | Bronze |
| Working temperature | -4℉ – 113℉ |
| Working humidity | 20%-90% |
| Lifespan (L70) | >50,000hrs |
| G.W. | 15 |
Features :
* Die casting aluminum housing & clear PC cover * UL Sosen driver, THD<15%, PF>0.9
* Dark bronze(standard), black, white finish (special) * IP65 waterproof * Easy installation and operation
* CRI >75Ra

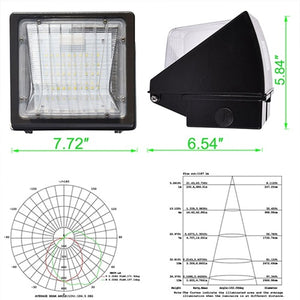

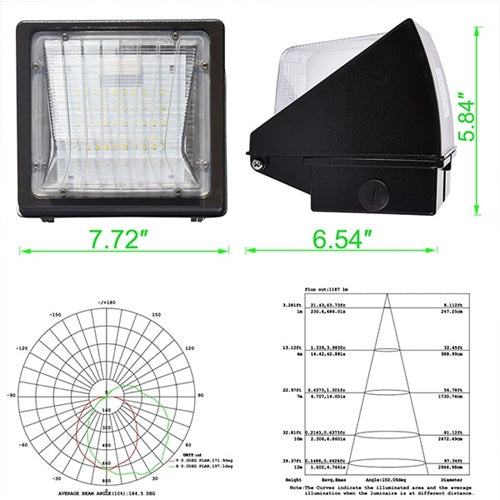

* CCT 5000K(standard) 3000K/4000K/5700K (special) Unit:mm
* Working temperature: -40°C~ 55°C
* Eco friendly without mercury
* Instant start, no flickering,no humming
* Energy saving, long lifespan 50,000 hours
* Non-dimmable(standard), dimmable(special) * No UV or IR
* Special order: photocell sensor /motion sensor, emergency battery backup
Download PDF Spec Sheet
