90 Angle USB Type B Male to Male Cable PCM-0614 (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

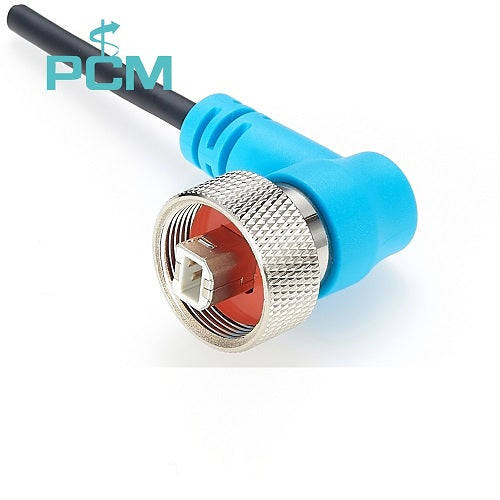

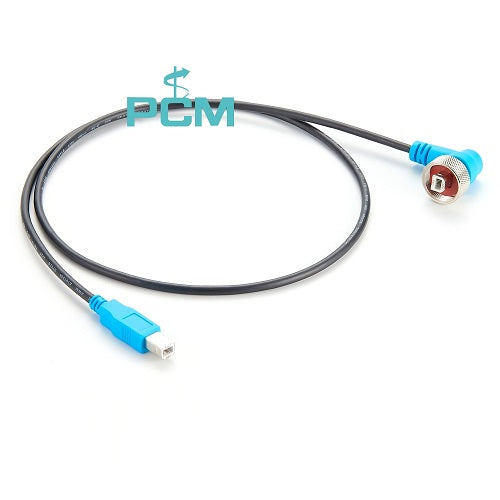

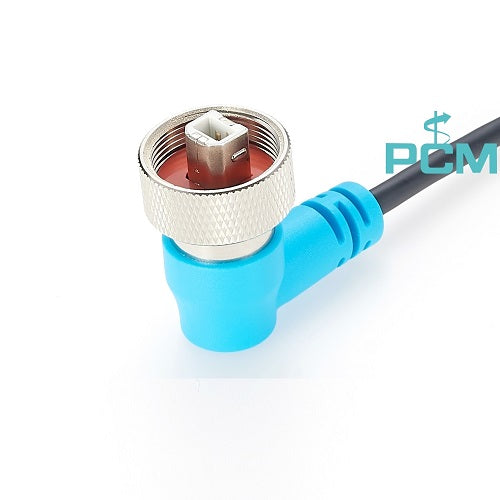

Waterproof 90 Angle USB Type B Male to Male Printer Panel Mount Cable
USB Type-B Waterproof Connector Cable with Cap, IP67 Waterproof USB B Printer Scanner Cord, USB B 2.0 Flush Mount Cable for Outdoor Equipment
Also Known As :
USB Connector, USB Cable, Adapter, USB Adapter, USB Cable, Electronics Components, Components, Connectors, Male Adapter, Male Connectors
Specification :
| Connector | Micro USB |
| Panel Mount Type | Screw Locking Mechanism |
| Shell Material | Copper Shell |
| Salt Spray Test | 72H |
| Panel cut-out size | Diameter : 25mm |
| Certificate | UL, Rohs, Reach |
| Gender | USB Type B Male to Male (Or Customized) |
| IP Grade | IP67 When Mated |
| Description | This waterproof and dustproof USB panel-mount cable features an IP67 rated female type-B connector on one end, and male type-B on the other. |
| Part No. | PCM-0614 |
• CL2 rated
• RoHS compliant
• Max speed 480 Mb/s
• USB 1.1/2.0 High-Speed Compatible
• Allowable panel depth: 2.5mm (full mating)
• IP67 rated (Submersion up to 1m, or 3.3ft)
• Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
• USB type B male female flush panel mounting extension cable allows you to DIY cars, trucks, boats or motorcycles in your own way
Application :
• Printer
• Scanner
• Server
• Data communication
• File transfer and printing
• Car, truck, motorcycle dashboard
Download PDF Spec Sheet
