9 Pole series plug-in power connector MAT01730650
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
General properties

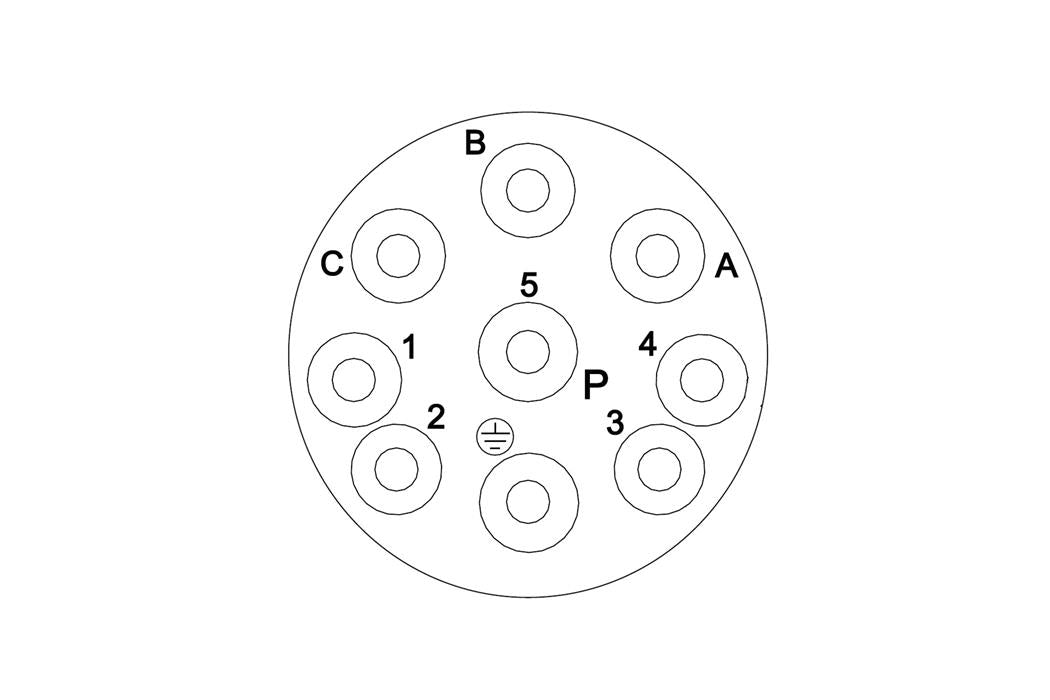

| Insulation insert & number of poles |
P-Type 9-pole |
| Rotation direction of insulation insert |
P type (anti-clockwise) |
| Number of poles |
9 pole |
| Contact type |
crimp bush, Slotted |
| Max. installation height |
2,000 mm |
| Material | Zinc die-casting,/brass, nickel-plated and plastic coated |
| Union nut/screw |
PA modif., 30% Gf. |
| Insulation body |
PA 6.6/PBT, UL 94/V0 |
| Contacts | Brass, gold-plated |
| Seal | FPM/EPDM |

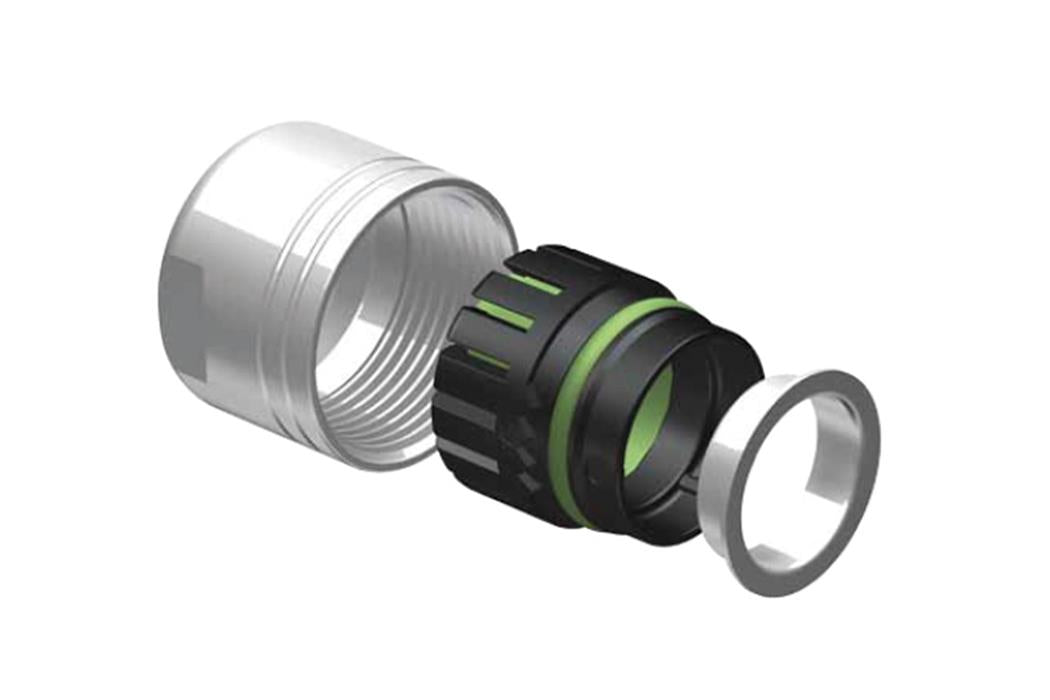

| Clamping ring material |
Brass, nickel-plated / PA modif., 30% Gf. |
| Plug design |
Power connector |
| Temperature range |
-4 °F to +266 °F (-20 °C to +130 °C) |

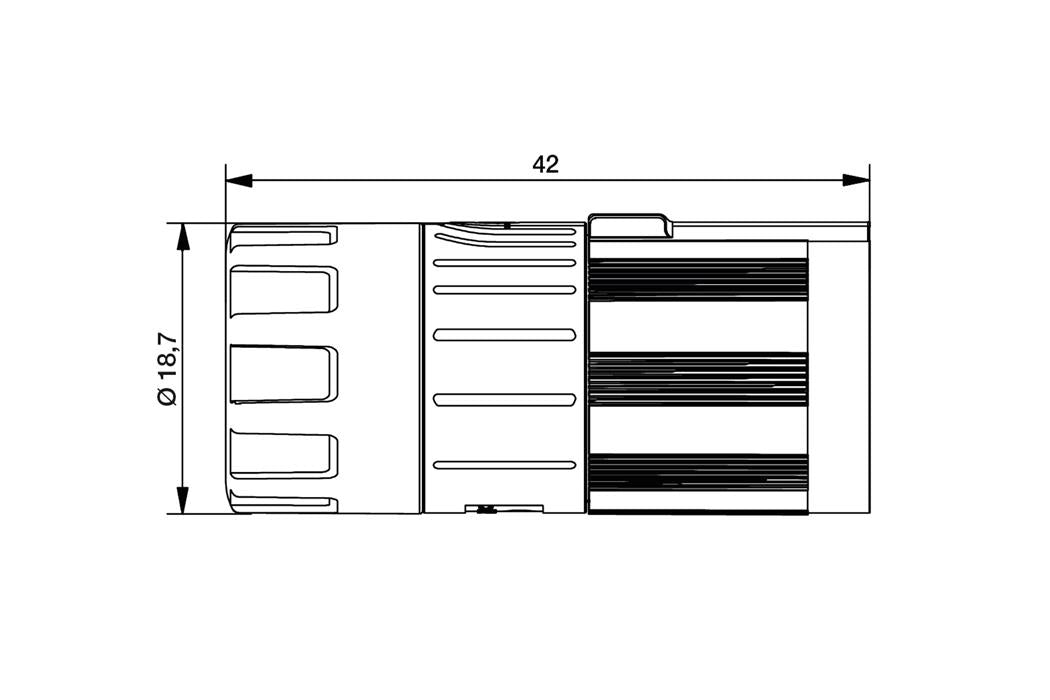

Dimensions
| Clamping range |
4.5-6.5 mm |
| Crimp insert |
4x1.0 mm + 5x1.0 mm |
Electrical Properties
| Max. continuous nominal current |
20 A |
| Nominal voltage (AC/DC) |
630 V |
| Testing voltage |
6000 V |
| Contact resistance |
< 5 mΩ |
| Insertion cycles |
> 50 |
| Protection class |
IP 66/67 [plugged] |
| Pollution degree |
3 |
| Over-voltage category |
III |

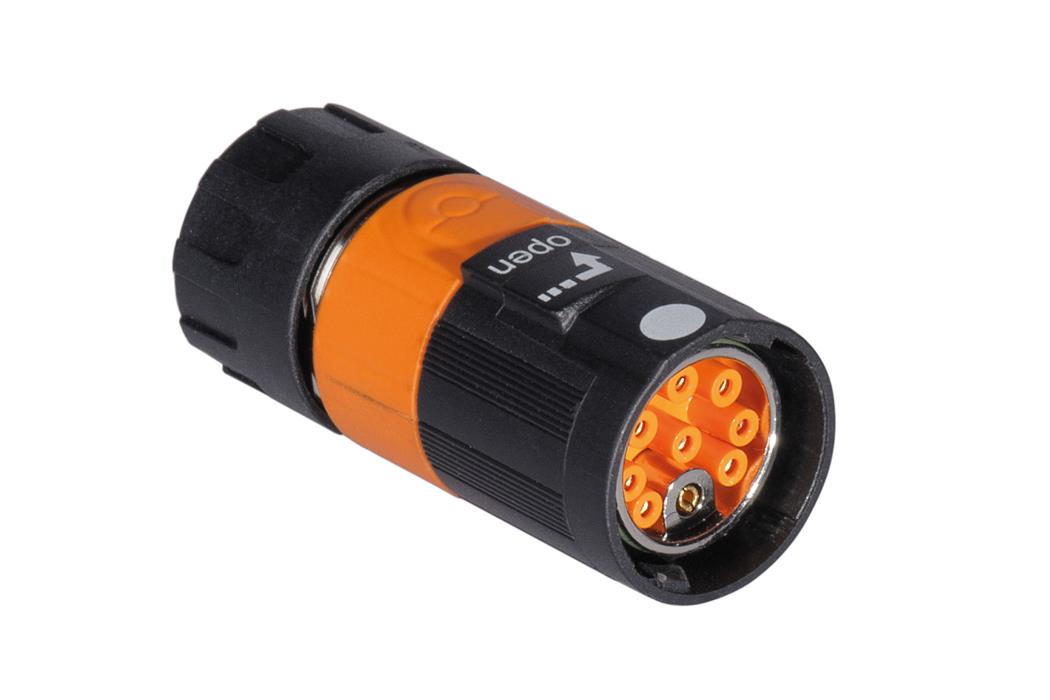

9 Pole series plug-in power connector MAT01730650
Description
• It is Series Plug-In Power Connector . It is Zinc die-casting,/brass, nickel-plated and plastic coated material. It's Temperature range -4 °F to +266 °F (-20 °C to +130 °C). It Contact type crimp bush, Slotted.
Specification
• Material: Zinc die-casting,/brass, nickel-plated and plastic coated
• Pollution degree: 3
• Protection class: IP 66/67 [plugged]
• Over-voltage category: III
• Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
• Union nut/screw: PA modif., 30% Gf.
• Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
• Contacts: Brass, gold-plated
• Seal: FPM/ EPDM
• Insulation body: PA 6.6/PBT, UL 94/V0
• Contact type: crimp bush, Slotted
