General properties

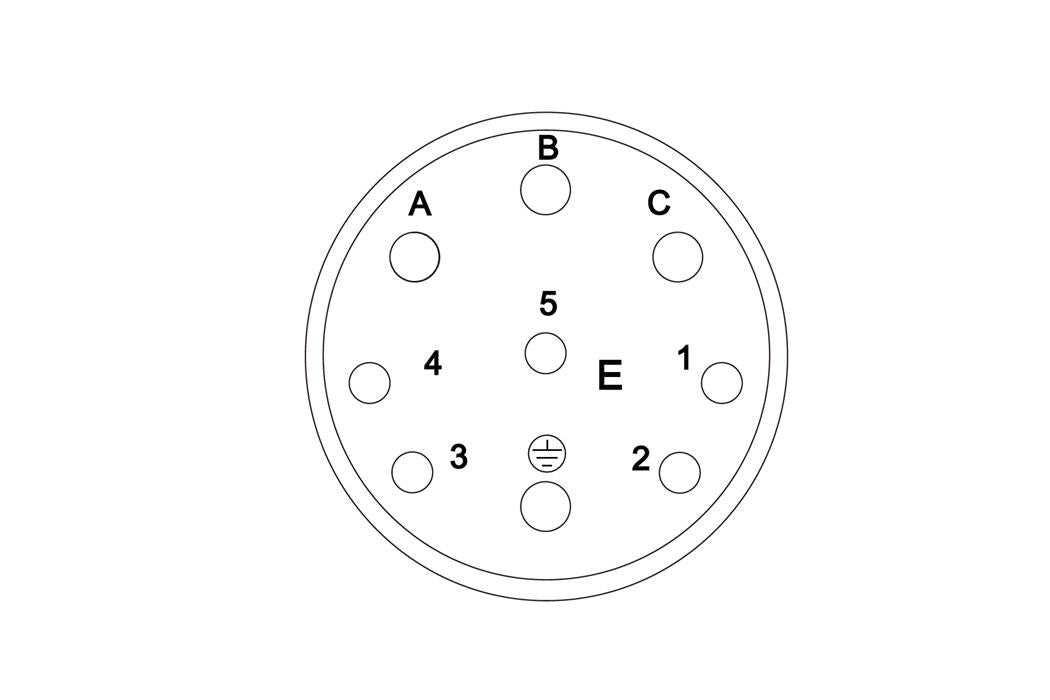

Insulation insert & number of poles
E-Type 9-pole
Rotation direction of insulation insert
E type (clockwise)
Number of poles
9 pole
Contact type
crimp pin
Max. installation height
2,000 mm
Material
Zinc die-casting,/brass, nickel-plated and plastic coated
Union nut/screw
PA modif., 30% Gf.
Insulation body
PA 6.6/PBT, UL 94/V0
Contacts
Brass, gold-plated
Seal
FPM/EPDM
Clamping ring material
Plastic
Plug design
Power Coupling
Temperature range
-4 °F to +266 °F (-20 °C to +130 °C)

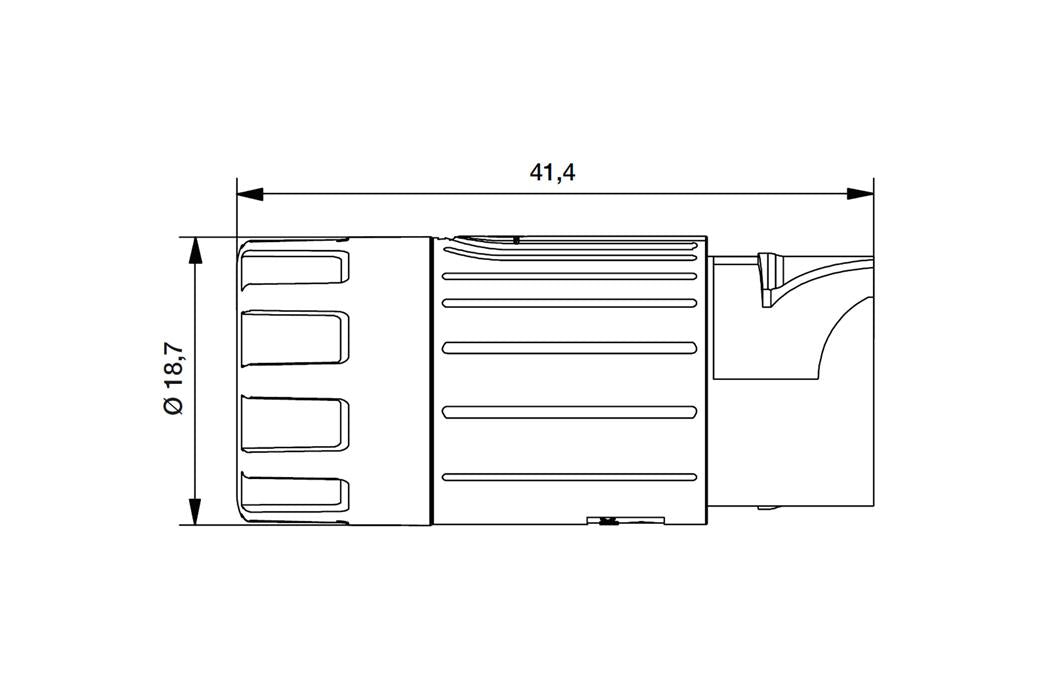

Dimensions
Clamping range
8.5-10.5 mm
Crimp insert
4x1.0 mm + 5x1.0 mm
Electrical Properties
Max. continuous nominal current
20 A
Nominal voltage (AC/DC)
630 V
Testing voltage
6000 V
Contact resistance
< 5 mΩ
Insertion cycles
> 50
Protection class
IP 66/67 [plugged]
Pollution degree
3
Over-voltage category
III

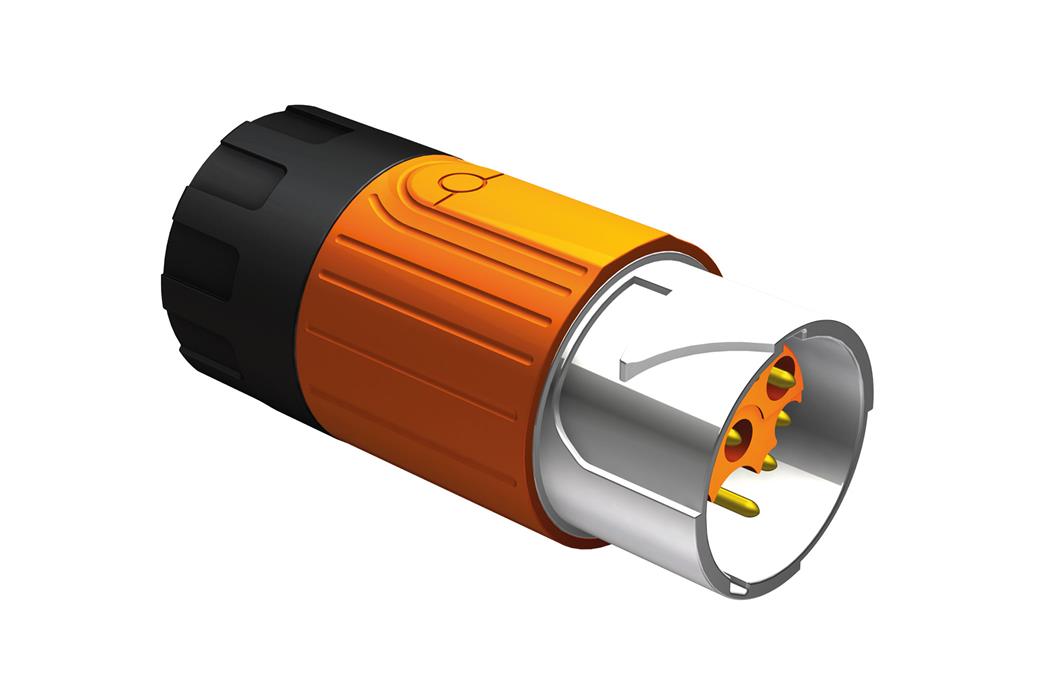

9 Pole Power Coupling Connector MAT01730656
Description
• It is power coupling connector. It is Zinc die-casting,/brass, nickel-plated and plastic coated material. It's Temperature range -4 °F to +266 °F (-20 °C to +130 °C). It Contact type crimp pin .
Specification
• Material: Zinc die-casting,/brass, nickel-plated and plastic coated • Pollution degree: 3 • Protection class: IP 66/67 [plugged] • Over-voltage category: III • Temperature range: -4 °F to +266 °F (-20 °C to +130 °C) • Union nut/screw: PA modif., 30% Gf. • Clamping ring material: Plastic • Contacts: Brass, gold-plated • Seal: FPM/ EPDM • Insulation body: PA 6.6/PBT, UL 94/V0 • Contact type: crimp pin
