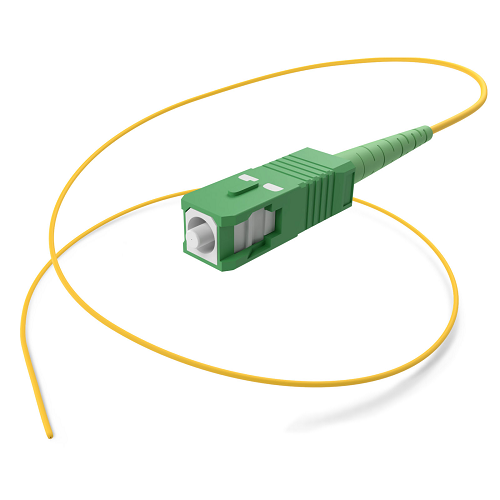

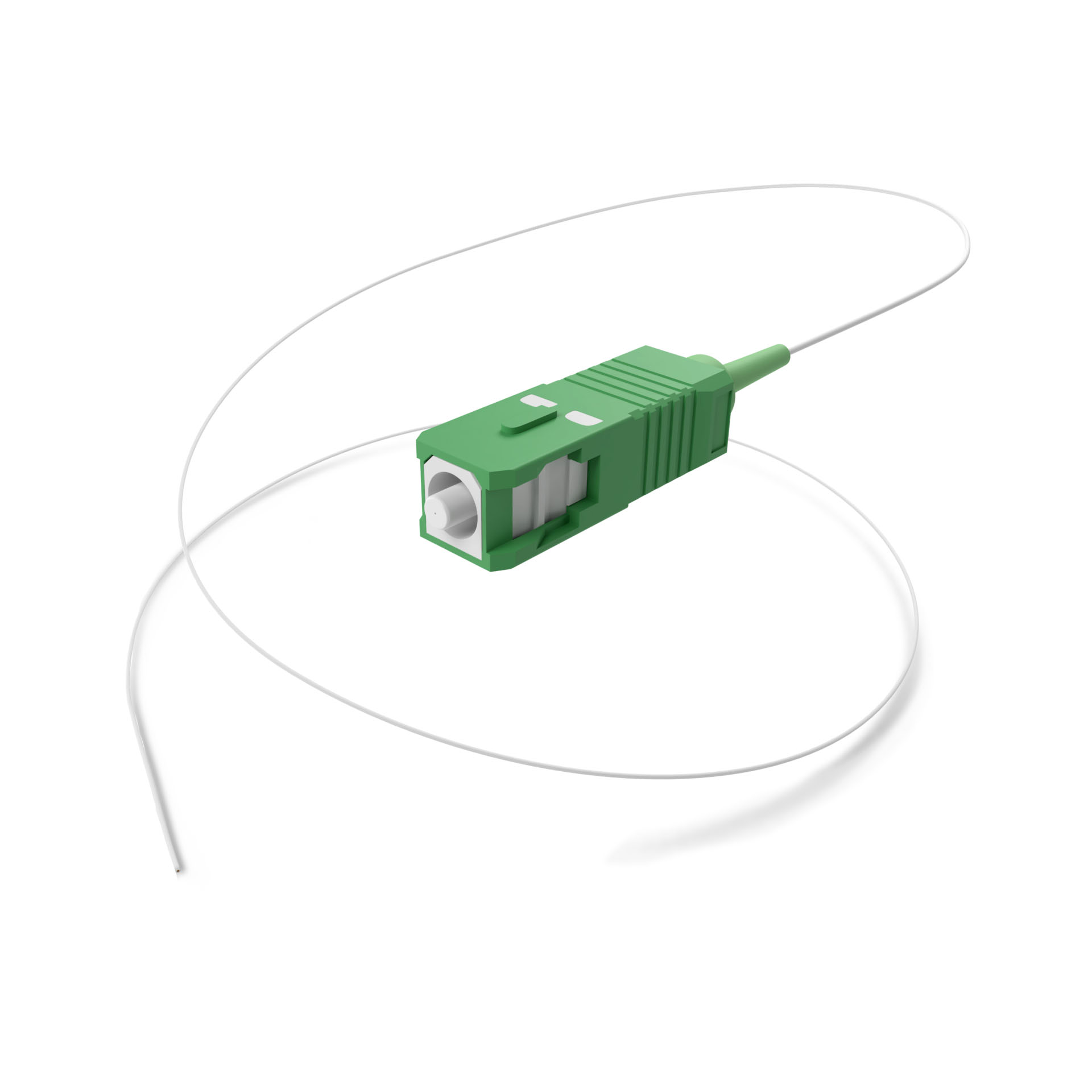

9/125 μm & APC Finish Singlemode Simplex Fiber Optic Pigtail
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
A Fiber Optic Pigtail is a short length of optical fiber terminated with a connector at one end and an exposed fiber at the other. It is commonly used in fiber optic cable terminations, splicing, and patch panels, providing a reliable and easy way to connect fibers within a network.
Also Known As :
Fiber Pigtail, Optical Fiber Pigtail, Singlemode Fiber Pigtail, SC/UPC Fiber Pigtail, Connectorized Pigtail, Fiber Patch Tail
Specification :
| Fiber Count | 1 (Simplex) |
| Conn A Finish | APC |
| Fiber Type | Singlemode 9/125 |
| Connector A | SC |
| Connector B | Open |
| Data Size | 10Gb to 80km |
| Overall | G.657.A1 (Compatible with G.652.D), OFNR, OS2 |
| Minimum Bend Radius (mm) | 50D (Dynamic)/30D (Static) |
| Return Loss | ≥60dB |
| Attenuation at 1550 nm | <0.3dB/km |
| HTS Code | 8544.70.0000 |
| Approvals | Compliant to IEC-61754 and TIA-604 (FOCIS), IEC 61300,GR-326, TIA/EIA568-B Compliant, ISO/IEC 11801 Verified, REACH, RoHS |
| Temperature Rating | -20°C to +70°C |
| Insertion Loss | ≤0.20 dB |
| Attenuation at 1310nm | <0.4dB/km |
Features :
Provides low-loss and high-speed data transmission over long distances.
Pre-terminated with a high-quality connector for quick and reliable connections.
UPC-polished endface for low insertion loss and high return loss.
Contains a single fiber, ideal for straightforward splicing or terminations.
Suitable for use in fiber optic termination boxes, patch panels, and distribution frames in telecom, data centers, and FTTH (Fiber to the Home) networks.
