8x2 USOC 24 Port Rack Mount Patch Panel Telco Interface panel DCC2482/2502

Product Information

Specification

DESCRIPTION:

The same cross-connect solutions available for Ethernet applications is also available for PBX equipment. For these applications, OCC offers Voice-Grade Telco Patch Panels, which break out to 24-RJ45 jacks. Customers can easily patch their phone system into the permanent link by simply using patch cords and open-ended cable assemblies punched down to a 110 block, 66 block, or 110 patch panel.

FEATURES:

• Patented PC board technology

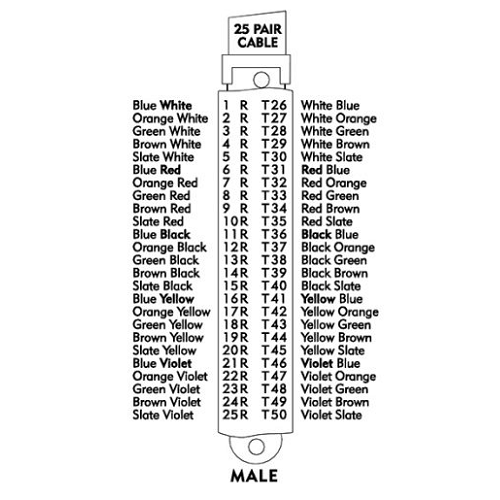

• 25-pair male Telco connectors allow for quick connects and easy installations
• Write-on label fields
• IKON compatible – 12 colors
• Supports all IEEE Power over Ethernet (PoE) standards
• Insulation resistance: 500 MΩ minimum
• Dielectric withstand: 1000 VAC RMS or 1414 VDC
• DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient
