8U Pivot Frame Wall Mount Rack 1915-3-400-08

Product Information

Specification

8U Pivot Frame Wall Mount Rack 1915-3-400-08

Description

The 8U Pivot Frame Wall Mount Rack makes network equipment installation and maintenance easy for installers. Its pivot feature allows the rackmount frame to swing down and stop at 90 degrees, giving installers full access to the rear of equipment. Even when in the open/down position, the rack can withstand the force of punching down multiple connections - a feature especially helpful when installing patch panels. The Pivot Frame Wall Mount Rack is built with a 12" depth making it suitable for network and telecom devices such as patch panels, network switches, routers, and more. Its modular design allows you to mount multiple racks above and/or below each other creating a larger rack solution. Ample cable routing is available with the open frame design, as well as the laser knockouts on either side of the rack. Gain full access to all sides of your equipment with the Pivot Frame Wall Mount Rack. Be sure to also check out the Pivot Frame Wall Mount Rack Cover and Pivot Frame Stationary Rackmount Brackets.

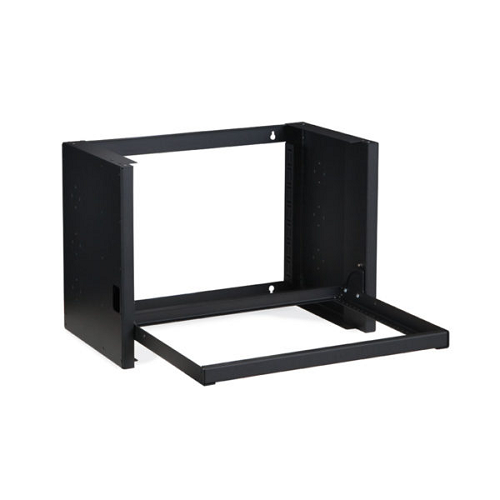

90 Degree Swing Down

Pivoting rackmount frame swings down to allow easy access to the rear of installed network equipment. An integrated positive stop prevents the frame from being opened more than 90 degrees to avoid causing damage or strain to your equipment and connections. A latching mechanism securely holds the frame in a closed position.

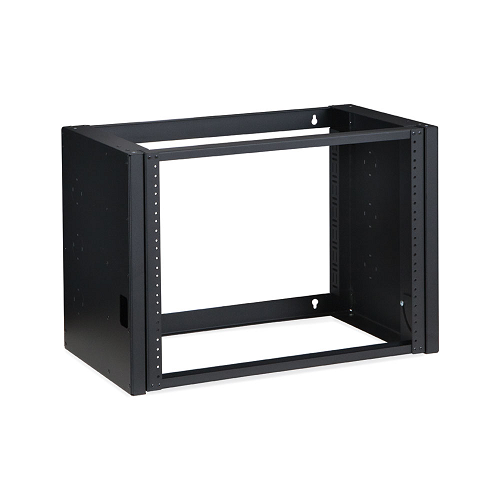

Open Frame Design

Open frame design allows the rack to be installed over existing equipment without having to remove and re-terminate network cables. Its design and the laser knockouts on both sides of the rack also provide numerous locations for routing cabling in and out of the rack.

Features

• Compatible with the 4U and 8U Pivot Frame Wall Mount Rack

• 10-32 tapped rails (10-32 rack screws sold separately)

• Includes 12 10-32 rack screws

• Optional Pivot Frame Wall Mount Rack Cover available (Sold separately)

• Optional Pivot Frame Stationary Rackmount Brackets available (Sold separately)

• 12" depth

• 19" EIA compliant

• 90 degree swing down

• 75 lb. weight capacity
