Product Information
Specification
| Type | High Voltage |
| Bandwidth | 40 MHz |
| Attenuation | 1000x |
| Compensation Range | 5 – 50 pF |
| Humidity | ≤80% RH @ 40° C (104° F) |
| Cable Length | 2 m ± 0.2 m |
| Readout Actuator | No |
| Weight | 180 g (0.40 lbs) |
| Dimensions |
3 x 3 x 21 cm (1.2 x 1.2 x 8 in) |
| RoHS 2 | Compliant |
| Part No. | CT4024 |
8kV Oscilloscope Probe
Description:
High voltage probes allow safe and accurate voltage measurement using your oscilloscope.
Model CT4024 is a compact probe featuring a 1000:1 divider ratio with voltage up to 8 kV (DC+peak AC), 6 kV (ACrms) and bandwidth up to 40 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Features:
• Meets IEC 61010-031 safety standard
• Small size with big performance
• Up to 8 kV DC + peak AC
• 40 MHz bandwidth
• Handle/Body: Black/Yellow

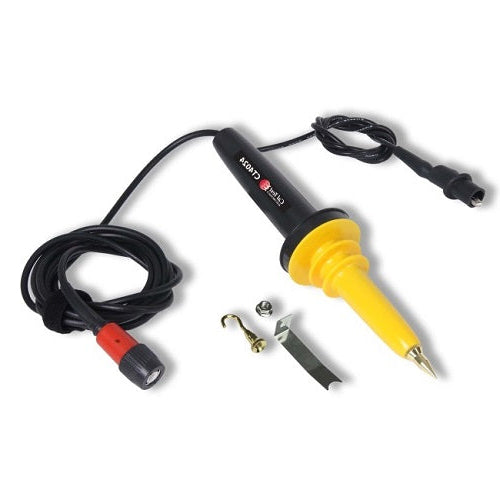

Kit Contains:
• High voltage probe
• Trimmer tool
• Tip
• Hook tip
• Flat bar tip
• User manual
Download PDF Spec Sheet
