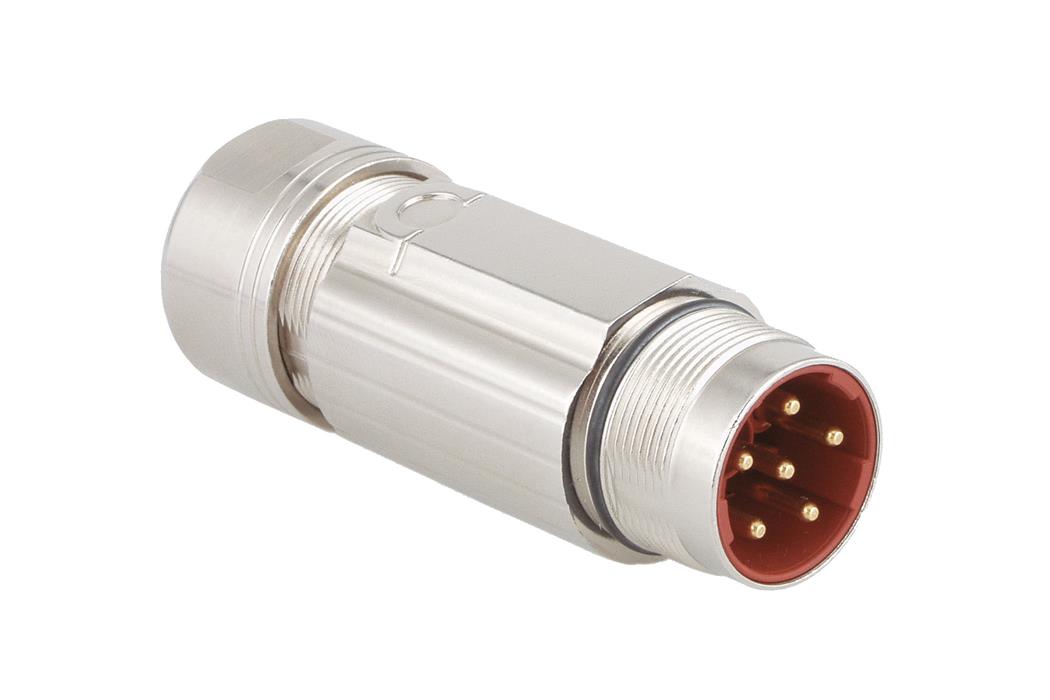

8 Pole Power Coupling Standard Connector MAT0179624
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
General properties

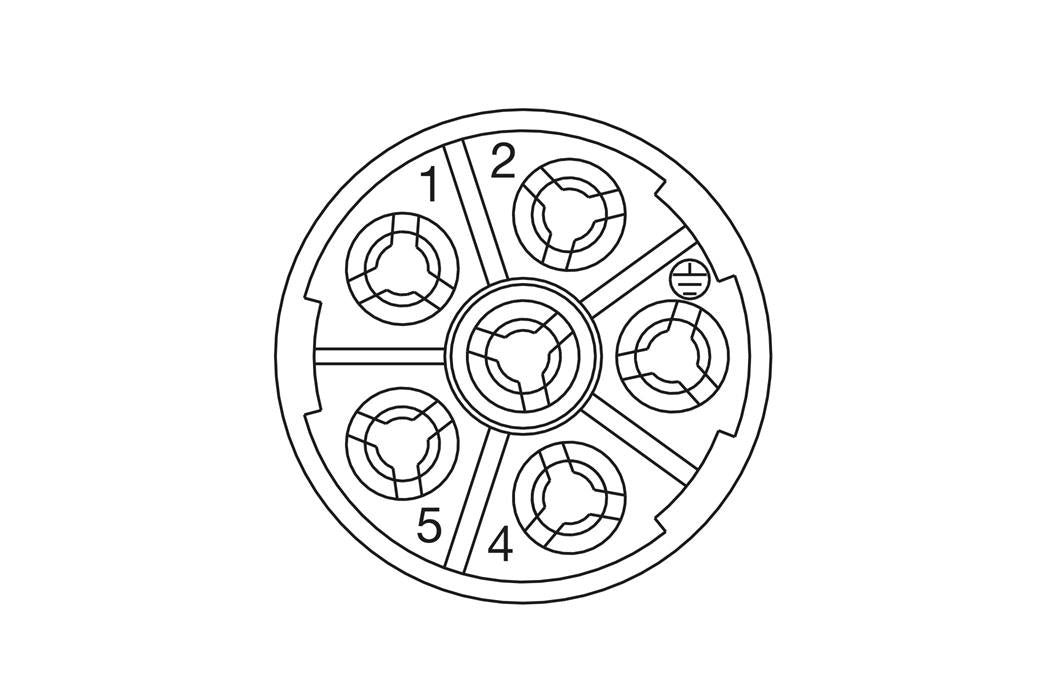

| Insulation insert & number of poles |
E-Type 8-pole |
| Rotation direction of insulation insert |
E type (clockwise) |
| Number of poles |
8 pole |
| Contact type |
crimp Pin |
| Max. installation height |
2,000 mm |
| Material | Zinc die-casting/brass, nickel-plated |
| Union nut/screw |
Brass, nickel-plated |
| Insulation body |
PA 6.6/PBT, UL 94/V0 |
| Contacts | Brass, gold-plated |
| Seal | FPM/HNBR |

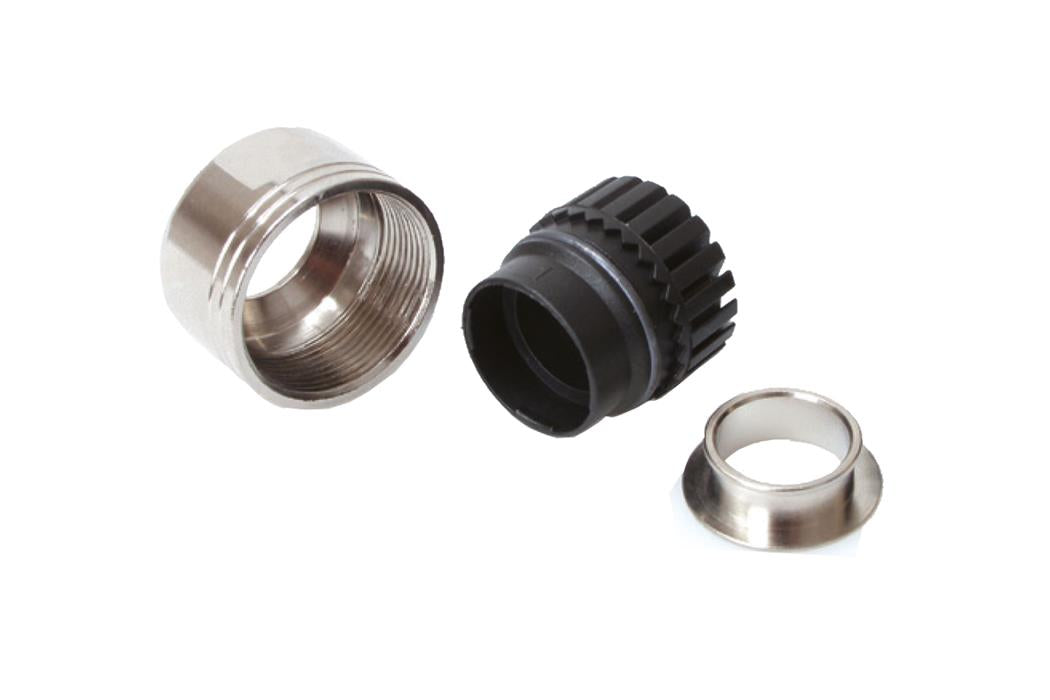

| Clamping ring material |
Brass, nickel-plated |
| Plug design |
Power coupling |
| Temperature range |
-4 °F to +266 °F (-20 °C to +130 °C) |

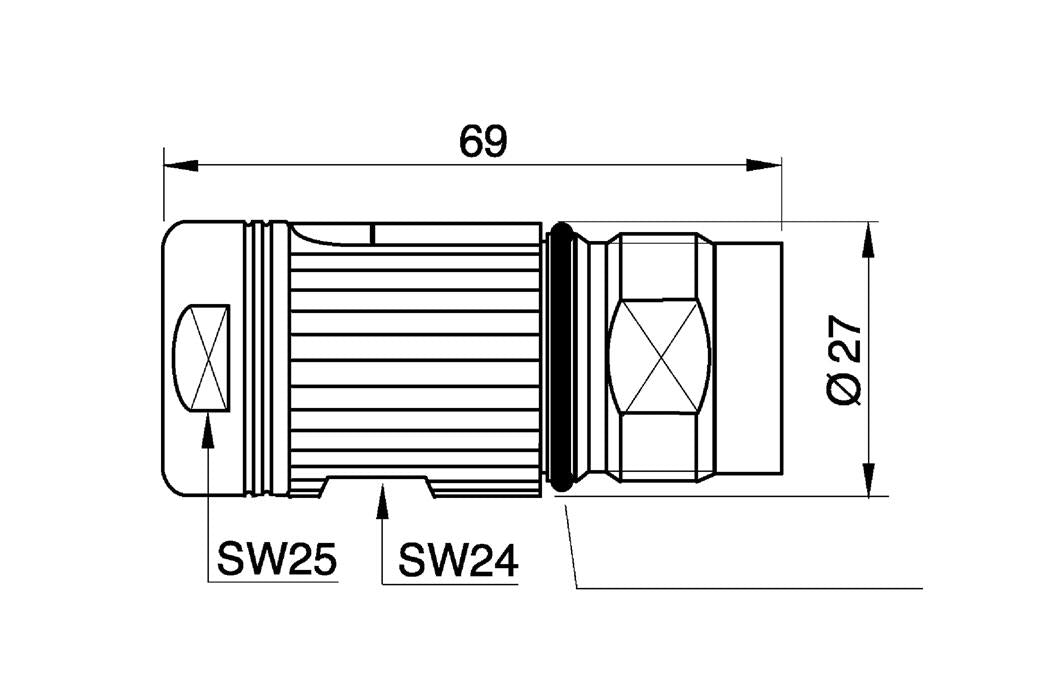

Dimensions
| Clamping range |
9.5-14.5 mm |
| Crimp insert |
4x2.0 mm + 4x1.0 mm |
Electrical Properties
| Max. continuous nominal current |
30 A |
| Nominal voltage (AC/DC) |
630 V |
| Testing voltage |
6000 V |
| Contact resistance |
< 3 mΩ |
| Insertion cycles |
> 50 |
| Protection class |
IP 66/67 [plugged] |
| Pollution degree |
3 |
| Over-voltage category |
III |
8 Pole Power Coupling Standard Connector MAT0179624
Description
• It is M23 Power Coupling Standard Connector series B. It is Zinc die-casting/brass, nickel-plated material. It's Temperature range -4 °F to +266 °F (-20 °C to +130 °C). It Contact type crimp pin.
Specification
• Material: Zinc die-casting/brass, nickel-plated
• Pollution degree: 3
• Protection class: IP 66/67 [plugged]
• Over-voltage category: III
• Temperature range: -4 °F to +266 °F (-20 °C to +130 °C)
• Union nut/screw: Brass, nickel-plated
• Clamping ring material: Brass, nickel-plated
• Contacts: Brass, gold-plated
• Seal: FPM/HNBR
• Insulation body: PA 6.6/PBT, UL 94/V0
• Contact type: crimp pin
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
