8 Ohm 8" High-End Woofer upto 9000 Hz 120 W AL 200 1281
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Rated power | 120 W |
| Maximum power | 180 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–9000 Hz |
| Mean sound pressure level | 88 dB (1 W/1 m) |
| Opening angle (-6 dB) | 122°/4000 Hz |
| Excursion limit | +/-10 mm |
| Resonance frequency fs | 32 Hz |
| Magnetic induction | 1.3 T |
| Magnetic flux | 930 µWb |
| Height of front pole-plate | 6 mm |
| Voice coil diameter | 38 mm |
| Height of winding | 20 mm |

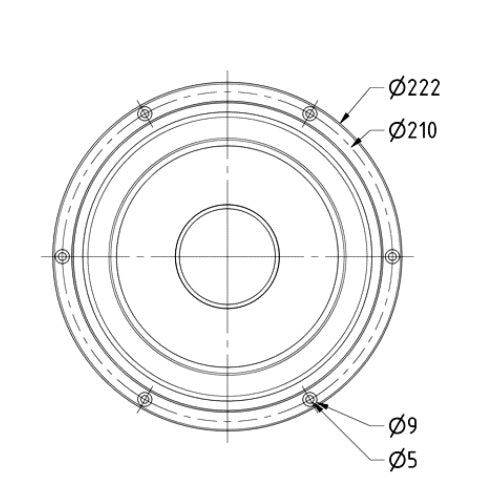

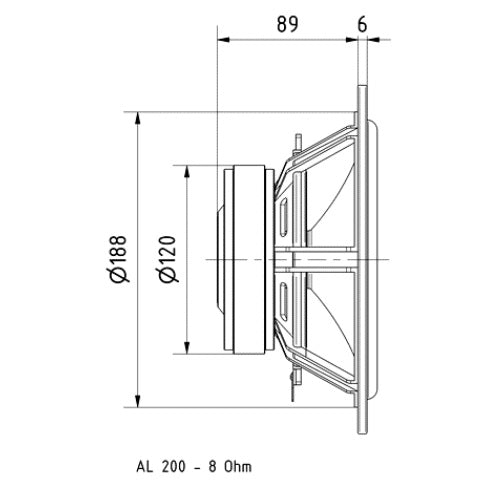

| Cutout diameter | 190 mm |
| D.C. resistance Rdc | 6.6 Ohm |
| Mechanical Q factor Qms | 3.73 |
| Electrical Q factor Qes | 0.39 |
| Total Q factor Qts | 0.35 |
| Equivalent volume Vas | 77 l |
| Effective piston area Sd | 216 cm² |
| Dynamically moved mass Mms | 21g |
| Force factor Bxl | 8.8 Tm |
| Inductance of the voice coil L | 1.2 mH |
| Connections | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Part Number | 1281 |
Description:

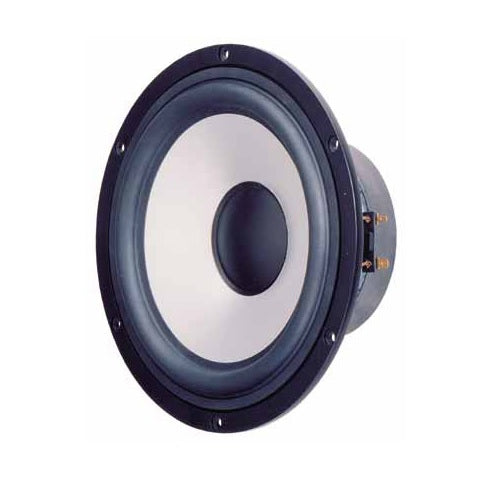

20 cm (8") High-End woofer with stiff aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low mechanical and electrical losses due to vented pole plate, vented damper and capton voice coil carrier. Fast pulse response due to light weight aluminium cone. Suitable for 2- and 3-way high end combinations and as low-midrange driver in 4-way high end systems.
*(fu: Lower cut-off frequency depending on cabinet).
Download PDF Spec Sheet
