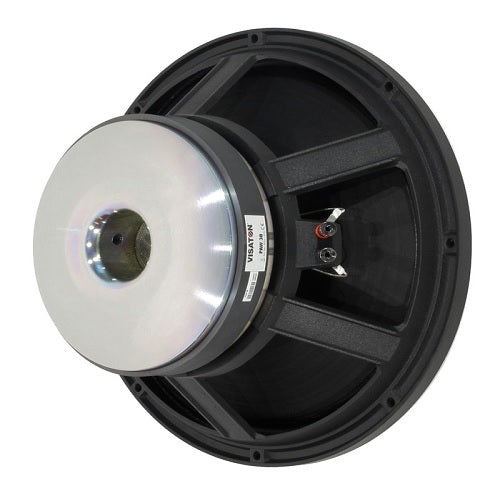

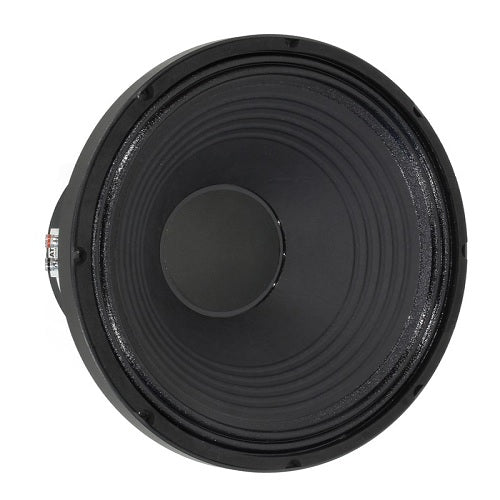

8 Ohm 15" Woofer for PA Applications upto 3700 Hz 700 W PAW 38 3054
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Cm | 0.18 mm/N |
| Rated power | 700 W |
| Maximum power | 1000 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–3700 Hz |
| Mean sound pressure level | 92 dB (2.83 V/1 m) |
| Maximum linear displacement | +/-5.5 mm |
| Excursion limit | +/-12 mm |
| Resonance frequency fs | 36 Hz |
| Height of front pole-plate | 12 mm |
| Voice coil diameter | 100 mm |
| Height of winding | 23 mm |

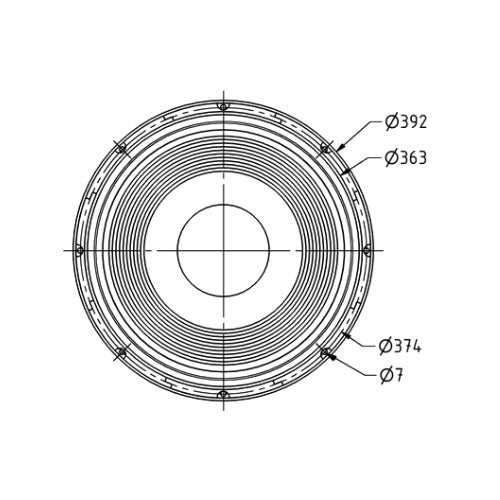

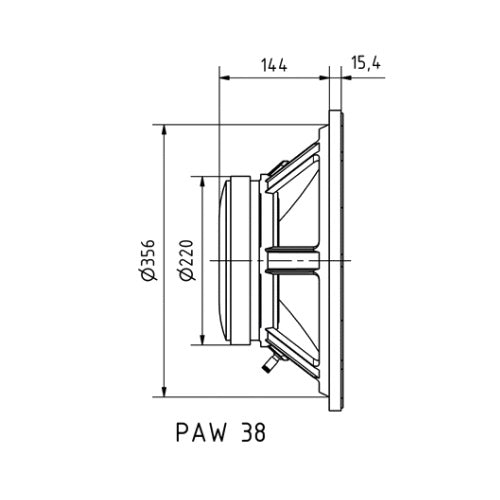

| Cutout diameter | 358 mm |
| D.C. resistance Rdc | 7.2 Ohm |
| Mechanical Q factor Qms | 9 |
| Electrical Q factor Qes | 0.31 |
| Total Q factor Qts | 0.29 |
| Equivalent volume Vas | 195 l |
| Effective piston area Sd | 898 cm² |
| Dynamically moved mass Mms | 125 g |
| Force factor Bxl | 25 Tm |
| Inductance of the voice coil L | 2.6 mH |
| Connections | Spring terminals |
| Part Number | 3054 |
Description:
38 cm (15") woofer for PA applications.
*(fu: Lower cut-off frequency depending on cabinet).
Attributes:
• Die cast basket
• Reinforced paper membrane
• 100 mm voice coil for high power handling
• Kapton voice coil former
• 55 mm t-yoke venting
• M shape surround for high excursion
• Connex spider
• EVA gasket
• Ferrite magnet.
Recommended Cabinets:
| Voulme/Principle | BR-Channel | fb | fc/QTC |
| 44 l/closed | - |
- |
84 Hz/0,71 |
| 93 l/bass reflex | 4 x BR 25.50 | 42 Hz | - |
| 150 l/bass reflex | 5 x BR 25.50 | 38 Hz | - |
Download PDF Spec Sheet
