Product Information
Specification
About:

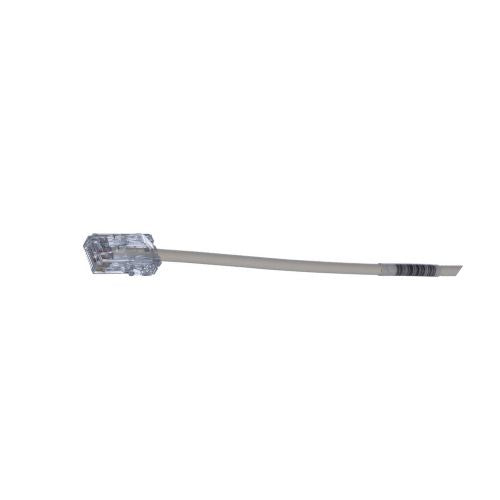

• The TX5e Cat 5e UTP Patch Cord is an 8-foot, off-white cord with a 0.150-inch (3.8mm) diameter.
• It is constructed of 28 AWG unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs.
• The compact 28 AWG design simplifies installation and management.
• The tangle-free latch prevents snags and ensures a quick release, streamlining moves, adds, and changes.
• Enabled with RapidID, the product comes with pre-installed barcodes for simple port mapping using RapidID software
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Sub Brand | Pan-Net |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft) | 8 |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Nominal Cable Outside Diameter (In) | 0.149 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 140 |
| Minimum Operating Temperature (°C) | 14 |
| Color | Off White |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Plug Type | 8 Position |
| UPC | 074983417827 |
Features:
• 100% performance tested for wire map, NEXT, and return loss.
• Centered de-embedded plug.
• Integral pair manager optimizes performance and consistency by reducing untwisting at the plug.
• Patented tangle-free latch prevents snags and provides easy release, saving time and ensuring reliability during frequent moves, adds, and changes.
• Smaller diameter, flexible cable design.
• Robust construction.
• 28 AWG UTP patch cord with Pan-Plug modular plugs on each end
Download PDF Spec Sheet
