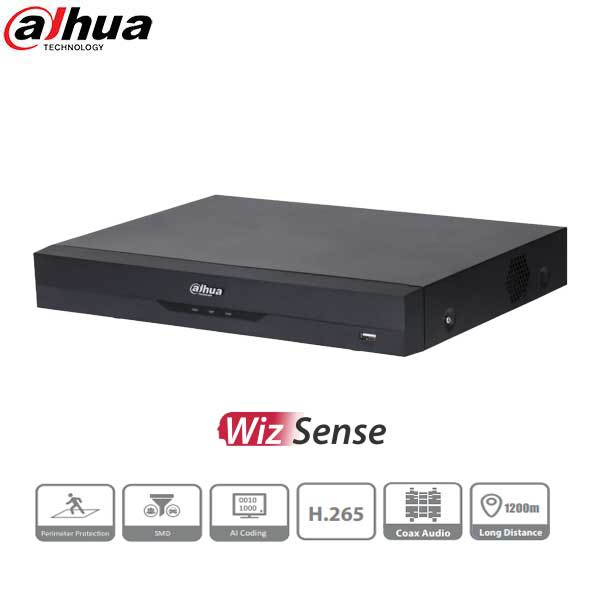

8 Channels 1U 6MP 1080p 2TB HDD Analytics Mini Penta-brid X51C2E2
Where are we? 4 Continents 9 Countries

Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Performance |
• Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) analog channels • 10 Tripwire/Intrusion rules per channel |
| Live View |
• Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event |
| Playback |
• Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event • Snapshot capacity: 500,000 |
| Analog Camera Input |
8 Channels, BNC |
| Audio - Output |
One (1) Channel, RCA |
| HDCVI |
5 MP, 4 MP, 1080p, 720p |
| Two-way Talk |
Audio Input Channel 1 In/ Audio Output, RCA |
| Compression |
AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Part No | X51C2E2 |
8 Channels 1U 6MP 1080p 2TB HDD Analytics Mini Penta-brid X51C2E2
DESCRIPTION :
The X51C2E2 HDCVI DVR offers 5M-N/1080p recording on each HDCVI channel and a host of advanced features and functions. The DVR takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. This recorder is the ideal solution for actively monitoring public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
FEATURES :
⦿ 5M-N/1080p Recording Resolution on All HDCVI Channels
⦿ Available with a 2 TB, 4 TB, 6 TB, or 8 TB Pre-installed Hard Drive
⦿ Dual-stream Video Recording
⦿ AI Coding Technology for High-quality Human/Vehicle Video
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 8 +4 IP Camera Channels, each channel up to 6 MP
⦿ Maximum 64 Mbps Incoming Bandwidth
⦿ Perimeter Protection and Smart Motion Detection (SMD)
⦿ Long-distance Video Transmission
⦿ Five-year Warranty
Download PDF Spec Sheet
