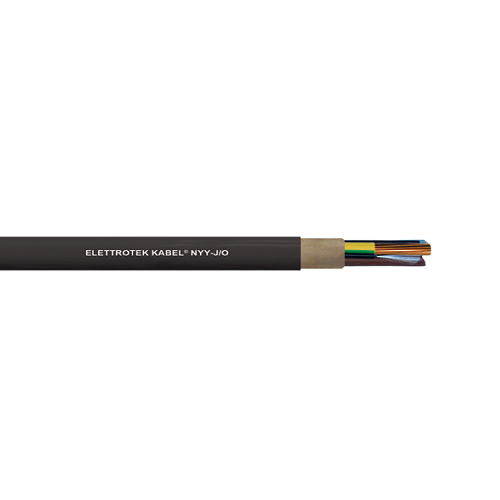

8 AWG 4C Bare Copper Unshielded PVC J Type NYY-J/O 0.6/1KV Power Low Voltage Cable

8 AWG 4C Bare Copper Unshielded PVC J Type NYY-J/O 0.6/1KV Power Low Voltage Cable

Allowable Ampacity for 8 AWG 4C Bare Copper Unshielded PVC J Type NYY-J/O 0.6/1KV Power Low Voltage Cable: 100 Amps

About:

This cable features a single conductor (4C) made from bare copper, utilizing a 8 American Wire Gauge ( AWG ) size, which is a standard gauge for conducting electrical power in low voltage applications. It is insulated with PVC and designed for a voltage rating of 0.6/1KV (600/1000 Volts), suitable for low voltage power distribution. The "J" type in NYY-J/O indicates that this cable includes a green-yellow earth (grounding) wire, whereas the "O" type (without the "J") does not.

Also Known As:

•  8 AWG Single Core Bare Copper Power Cable
•  PVC Insulated NYY-J Cable
•  Unshielded Low Voltage Cable

Application:

•  Residential and commercial building wiring for power and lighting circuits.
•  Fixed installations in open air, underground, in water, within facilities, where mechanical damages are not expected.
•  Used in control and power circuits in power plants, industries, and distribution networks.
•  Suitable for outdoor and indoor use, in cable ducts, and for direct burial applications where a higher degree of electrical insulation is required.

Standards:

•  Typically adheres to VDE standards, ensuring high-quality manufacturing and safety for installation in various environments.
•  Meets IEC standards for low-voltage power cables, ensuring compatibility and safety in international applications.
•  May also meet national standards depending on the country of manufacture and intended use, ensuring it is suitable for specific local requirements.

Construction:

•  Conductor: Solid Or Stranded Red Copper Conductor Cl.1 Or 2, Acc. To Iec 60228 Din Vde 0295
•  Insulation: Pvc Type Div4
•  Colour Cores: Acc. To Din Vde 0293-308, Hd 308 S2 From 6 Cores Black Cores With Consecutive Numbers Acc. To En 50334; Green-yellow Earth-wire From 3 Cores
•  Stranding: Cores Stranded Concentrically
•  Outer Sheath: Black (Ral 9005), Pvc Type Dmv5

Features:

•  According To Iec 60502-1, Din Vde 0276-603
•  Suitable In Moist And Dry Environements, Outdoor, In Cable Ducts,
•  Underground And In Water
Ozone Resistance
Uv Resistance
•  Re: Circular Solid Conductor
•  Rm: Circular Stranded Conductor
•  Sm: Sector-shaped Stranded Conductor
•  Se: Sector-shaped Solid Conductor

Specifications:

• AWG No: 8
• No.of cores x cross section n x mm2: 4x10 re
• Outer-Ø ca.mm ± 10%: 18,5
• Copper weight kg/km: 384
• Nominal voltage: Uo/U 0,6/1 kV
• Test voltage: 4 kV
• Temperature range: Fixed laying: - 40 oC up to + 70 oC, Flexible application: - 5 oC up to + 50 oC
• Max short circuit temperature:+ 160 o C
• Min. bending radius: Single core: 15 x d. Multi cores: 12 x d
• Cable weight approx. kg/km: 730
• Part Number: 46180G72041M61
