Product Information
Specification
| Product Type | Step-Down Butt Splice |
| Sub Brand | StrongHold |
| Copper Conductor Size (AWG) | 6, 8 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Standards Met | cULus |
| Barrel Length (In.) | 1.77 |
| Barrel Length (mm) | 45 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 1.77 |
| Overall Length (mm) | 45 |
| Wire Strip Length (In.) | 0.47 |
| Wire Strip Length (mm) | 12 |
| CSA Temperature Rating (°C) | 75 |
| CSA Temperature Rating (°F) | 167 |
| Part No | ESV6-ESV8-Q |

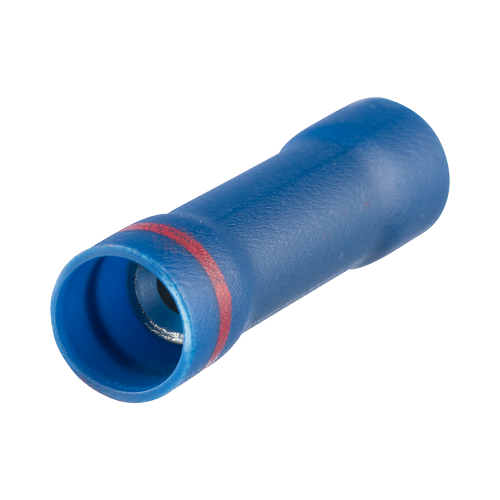

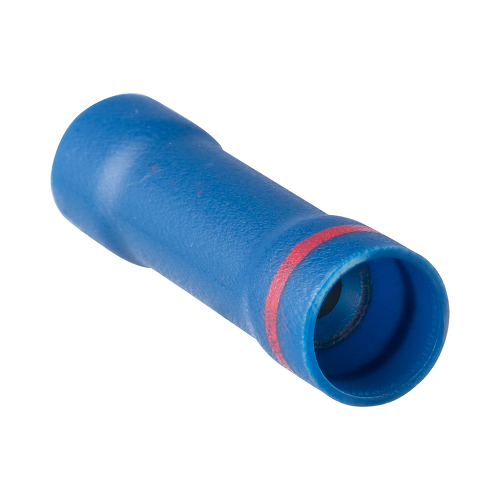

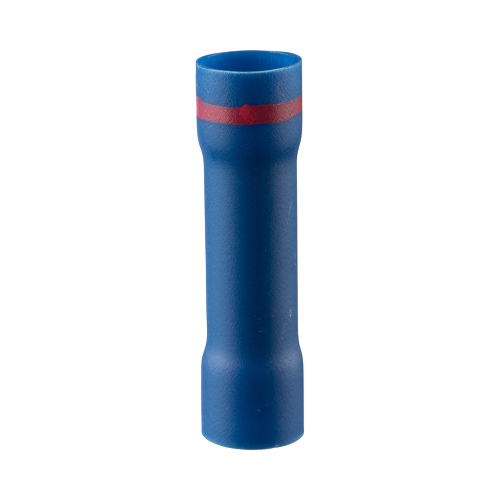

8-6 AWG PK25 StrongHold ESV6-ESV8-Q Step-Down Butt Splice ESV6-ESV8-Q
DESCRIPTION :
StrongHold ESV6-ESV8-Q Contractor Grade Vinyl Insulated Step-Down Butt Splices are a reliable and economical option that withstand a wide range of general-purpose applications. They are designed to splice two solid or stranded wires together to repair or lengthen the wires. Accommodates 6 AWG to 8 AWG, are blue in color, and come in packages of 25.
