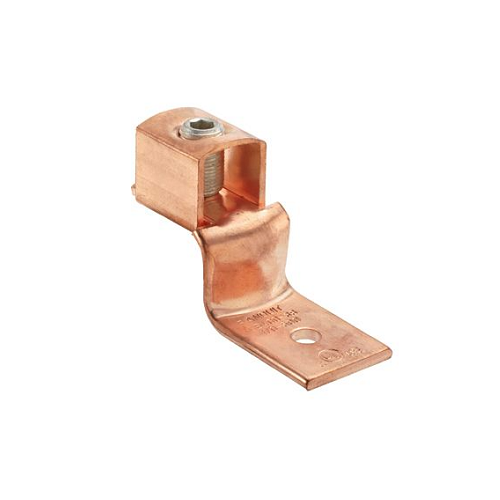

8-2 AWG 1/4 Stud Mechanical Connector 1Hole Offset Floating Tongue Lug Copper CB70-14-CY (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application: | Copper Mechanical Lug |
| Product Type: | Mechanical Connectors - Lug |
| Base Material: | Copper |
| Minimum Copper Conductor Size (AWG STR): | 8 |
| Maximum Copper Conductor Size (AWG STR): | 2 |
| Stud Hole Size (In.): | 1/4 Inches |
| Number of Holes: | 1 Inches |
| Tongue Type: | Offset Floating Tongue |
| Tongue Angle: | Straight |
| Tongue Length (In.): | 0.8 Inches |
| Tongue Thickness (In.): | 0.08 Inches |
| Tongue Width (In.): | 0.47 Inches |
| Overall Height (In.): | 0.64 Inches |
| Overall Length (In.): | 1.55 Inches |
| Overall Width (In.): | 0.47 Inches |
| Barrel Type: | Single Barrel |
| Barrel Length (In.): | 0.5 Inches |
| Finish/Coating: | Bare |
| Standards Met: | cULus Listed for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C): | 90 |
| Maximum Voltage (V): | 600 |
| Amperage (A): | 90 |
| Slotted Screw: | Yes |
| Sub Brand: | Pan-Lug™ |
| Part Features: | Range taking,high strength copper,internal pressure bar,v collar. |
| Part No: | CB70-14-CY |
Type CB:
• Made from high strength electrolytic copper to provide premium electrical and mechanical performance
• Wide wire range-taking capability minimizes inventory requirements
• Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector
• Made from high strength electrolytic copper to provide premium electrical and mechanical performance
• Wide wire range-taking capability minimizes inventory requirements
• Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector
Download PDF Spec Sheet
