8/16-14 AWG StrongHold Step-Down Butt Splice Red ESV8-ESV14-Q (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Step-Down Butt Splice |
| Maximum Metric Conductor Size (mm²) | 8 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | StrongHold™ |
| Copper Conductor Size (AWG) | #8, #16 - #14 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Barrel Length (In.) | 1.41 |
| Barrel Length (mm) | 35.8 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (mm) | 35.8 |
| Wire Strip Length (mm) | 9.6 |
| Part No. | ESV8-ESV14-Q |

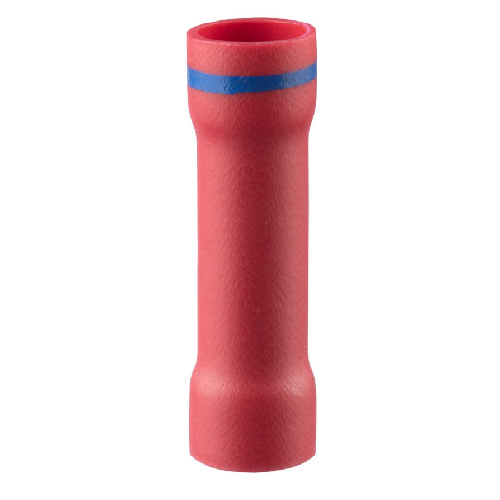

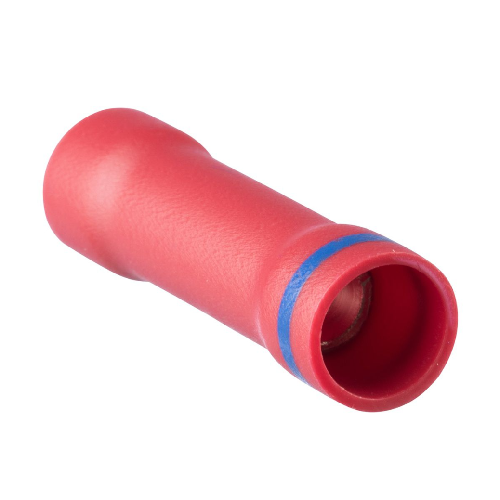

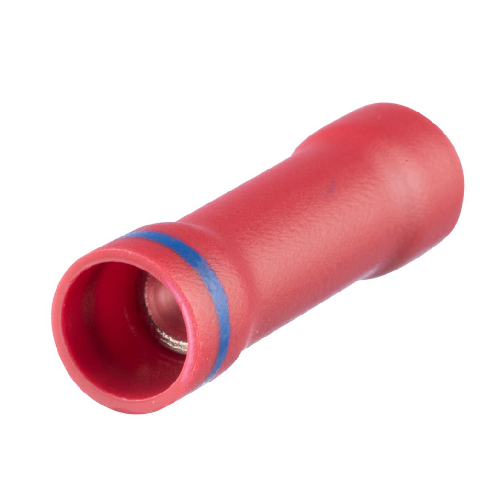

8/12-10 AWG StrongHold Step-Down Butt Splice Red ESV8-ESV14-Q
Description:
StrongHold ESV8-ESV14-Q Contractor Grade Vinyl Insulated Step-Down Butt Splices are a reliable and economical option that withstand a wide range of general-purpose applications. They are designed to splice two solid or stranded wires together to repair or lengthen the wires. Accommodates 8 AWG to 16-14 AWG, are red in color, and come in packages of 25.
