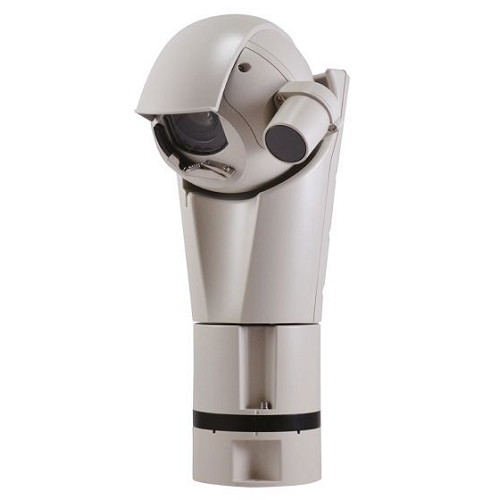

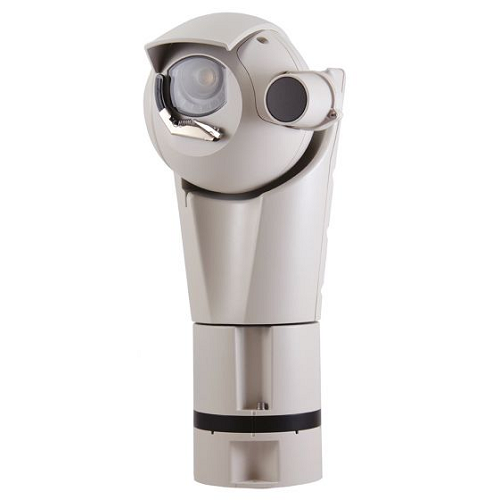

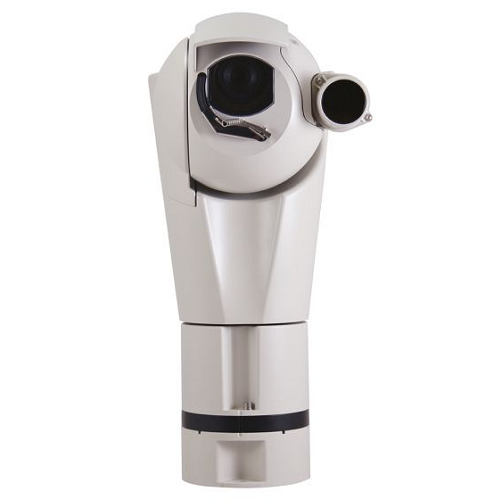

640x512 Dual Sensor Thermal PTZ Network Camera UED22IA000AH

Product Information

Specification

ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 8.7mm (50° HFOV), 640x512, 30Hz, 24Vac/dc - PoE 90W, wiper. The EVO DUAL PTZ (UED) is an advanced network positioning system that delivers simultaneous video streams from both a high-sensitivity visual camera and a thermal camera. These cameras are precisely synchronized with the PTZ (pan-tilt-zoom) movements, ensuring seamless tracking and monitoring. ULISSE EVO DUAL (UED) is designed to provide reliable, 24/7 outdoor video surveillance, making it ideal for securing perimeters, borders, critical infrastructures, traffic, railways, and more. This system combines the strengths of both cameras into one powerful surveillance tool. The visible camera excels at recognizing and identifying targets, while the thermal camera enhances detection capabilities, especially in total darkness or under extreme weather conditions. The thermal sensor, using non-cooled long-wave infrared (LWIR) technology with vanadium oxide (VOx), ensures maximum detection accuracy and is available in 320x256 or 640x512 resolution, with a variety of optical options to suit different needs. The visible camera, a SONY FCB-EV7520, features a 30x optical zoom and a 1/2.8" Exmor R CMOS sensor, capable of Full HD 1080/60p resolution. It provides impeccable image quality, even when capturing fast-moving objects or in challenging lighting environments. With features such as image stabilization and dynamic privacy masking, the camera also benefits from advanced SONY technologies like configurable Wide Dynamic Range (WDR) and High Light Compensation, allowing optimal management of strong light contrasts. Together, these features make the EVO DUAL PTZ an exceptional and versatile solution for demanding surveillance applications.

Features:

• Easy to install
• Maximum detection accuracy
• PoE compatible with standard IEEE.802.3bt
• Designed to endure outdoor applications
• Unbeatable solution for video surveillance of perimeters and critical areas
• ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 8.7mm (50° HFOV), 640x512, 30Hz, 24Vac/dc - PoE 90W, wiper

Specifications:

• Product Type: Network PTZ Camera
• Resolution: 640x512
• Part Number : UED22IA000AH
