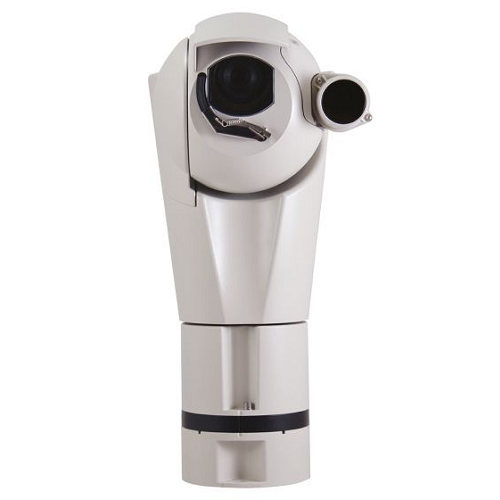

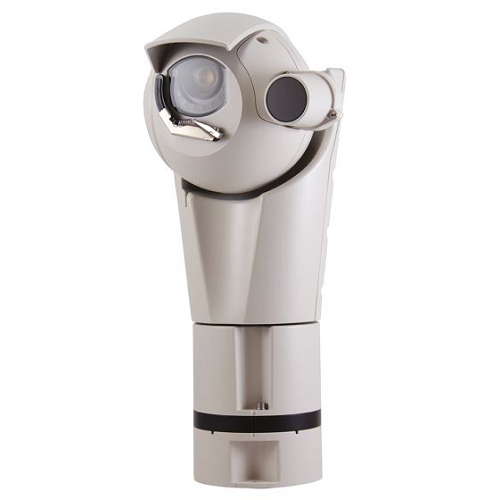

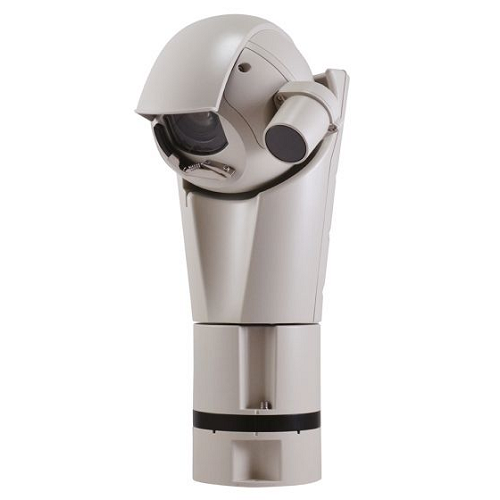

640x512 Dual Sensor Thermal PTZ Network Camera UED22IA000A

Product Information

Specification

ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 8.7mm (50° HFOV), 640x512, 7.5Hz, 24Vac/dc - PoE 90W, wiper. The EVO DUAL PTZ (UED) is a network positioning system that integrates advanced technology to provide two simultaneous video feeds from a high-sensitivity visual camera and a thermal camera. These cameras are precisely aligned with the PTZ (pan-tilt-zoom) movements, offering seamless monitoring. ULISSE EVO DUAL (UED) is the perfect solution for continuous, reliable outdoor surveillance, covering perimeters, borders, critical infrastructures, traffic, railways, and more. This dual-camera setup combines the strengths of both cameras into a powerful surveillance tool. The visible camera excels at recognizing and identifying targets, while the thermal camera enhances detection accuracy, even in complete darkness or harsh weather conditions. The non-cooled long-wave infrared (LWIR) thermal sensor, made with vanadium oxide (VOx), ensures maximum detection precision under any condition. The thermal camera is available in resolutions of 320x256 or 640x512, with a variety of lens options for optimal configuration. The visible camera is a SONY FCB-EV7520 featuring 30x optical zoom and a 1/2.8" Exmor R CMOS sensor, delivering Full HD 1080/60p resolution. It provides exceptional image quality, even when tracking moving objects or under challenging lighting conditions. With image stabilization and dynamic privacy masking, the camera also includes SONY's advanced technology, such as configurable Wide Dynamic Range (WDR) and High Light Compensation, to effectively manage high-contrast lighting situations. This combination of features makes the EVO DUAL PTZ a powerful and versatile tool for high-performance outdoor surveillance.

Features:

• Easy to install
• Maximum detection accuracy
• PoE compatible with standard IEEE.802.3bt
• Designed to endure outdoor applications
• Unbeatable solution for video surveillance of perimeters and critical areas
• ULISSE EVO DUAL PTZ, Day/Night camera SONY FCB-EV7520, FullHD, zoom 30x, 1/2.8", H264/AVC, thermal camera 8.7mm (50° HFOV), 640x512, 7.5Hz, 24Vac/dc - PoE 90W, wiper

Specifications:

• Product Type: Network PTZ Camera
• Resolution: 640x512
• Part Number : UED22IA000A
