640 x 512 Outdoor Uncooled 30HZ Thermal IP Security Camera MVXT2U0SAZ00BH

Product Information

Specification

640 x 512 Outdoor Uncooled 30HZ Thermal IP Security Camera MVXT2U0SAZ00BH

Also Known As:

Thermal Camera, Radiometry Functions, Outdoor Camera, Uncooled Camera, 30HZ Camera, 19mm Lens Camera

About:

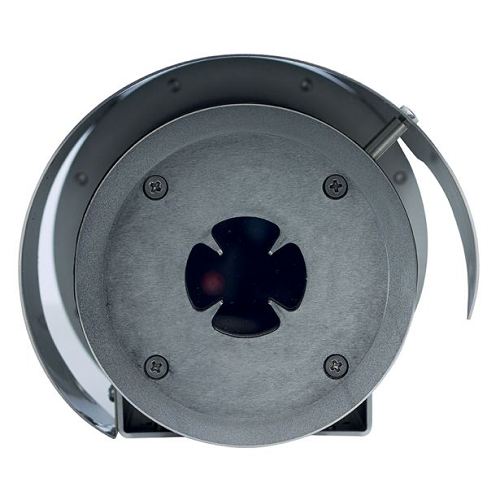

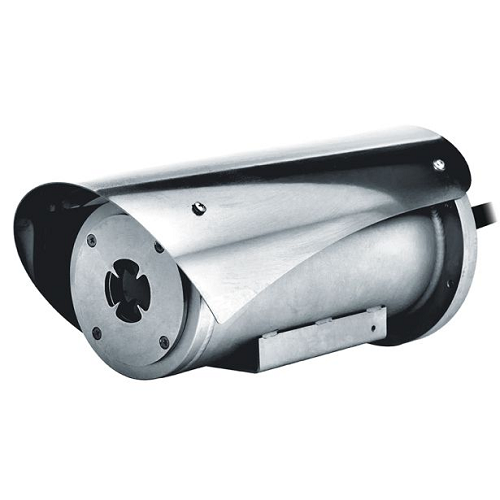

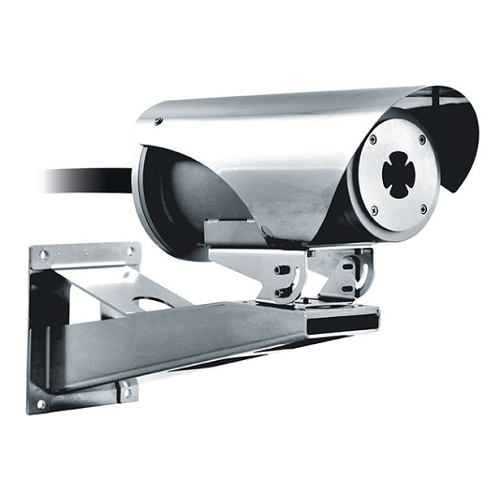

MVXT thermal camera with radiometric functions, in AISI 316L, 12-24Vdc/24Vac, IP version H264/AVC, 19mm, 640x512, 30Hz, armoured cable 4m, sunshield, -60°C/+65°C.  The MAXIMUS MVXT explosion-proof camera is an ideal solution for efficient and preventive video surveillance in hazardous environments where explosive atmospheres may occur due to flammable gases or dust. It is specifically designed for applications in the Oil & Gas, marine, and industrial sectors. The compact and functional housing is constructed entirely from AISI 316L stainless steel, providing guaranteed corrosion resistance further enhanced by specialized polishing processes. With an extensive certified temperature range of -60°C to +65°C and a sophisticated cold start system, the camera operates reliably in extreme environments. It is rated IP66/IP68, ensuring full protection against harsh weather conditions and allowing submersion up to 5 meters for 2 hours. Additionally, the IP69 rating permits cleaning with high-pressure water jets. Certified under Lloyd’s Register Type Approval System Test Specification Number 1, the MAXIMUS MVXT is approved for marine and offshore applications in environmental categories ENV1, ENV2, ENV3, and ENV5. Equipped with IP-based radiometric functionality, the camera can detect temperature using the central four pixels of the image. Advanced radiometry options are available to measure specific object temperatures by defining areas within the image. The MAXIMUS MVXT also integrates thermal imaging capabilities, enabling alarm notifications and immediate preventive actions to mitigate potential risks or unauthorized intrusions. Its plug-and-play design, with multipolar wiring, ensures quick and secure installation, eliminating the complexity of traditional setups. This robust and versatile camera combines durability, advanced functionality, and user-friendly features, making it an excellent choice for critical monitoring in challenging environments.

Features:

• Radiometry functions
• Exceptional corrosion resistance
• MVXT 12-24VDC 24VAC 19MM VGA 30HZ 4MAC
• 640 x 512 Outdoor Uncooled Thermal IP Security Camera, 19mm Lens
• Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)

Specifications:

• Product Type: Thermal Camera
• Resolution: 640 x 512 (Thermal)
• Lens Size: 19mm
• Voltage: 12vDC, 24vDC, 24vAC
• Part Number: MVXT2U0SAZ00BH
