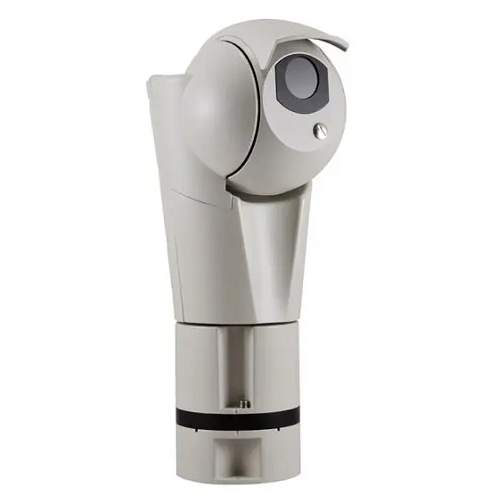

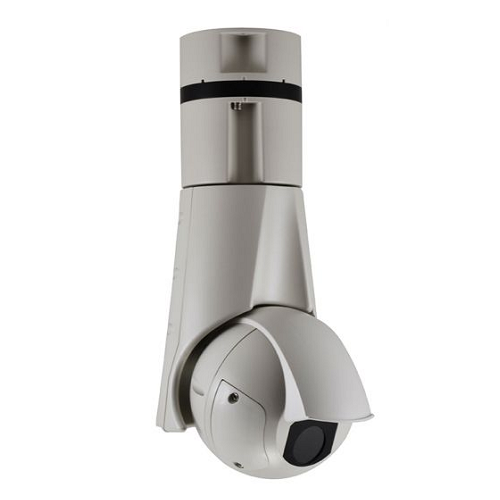

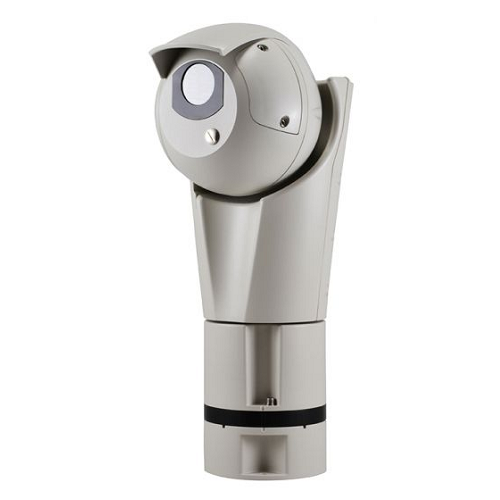

640 X 512 Network Outdoor PTZ Thermal Camera with 25mm Lens UET2EA000AH

Product Information

Specification

ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 25mm, 640x512, 30Hz, 24Vac/dc - PoE 90W. The ULISSE EVO THERMAL is a cutting-edge thermal imaging system designed to deliver exceptional durability and reliable operation in extreme outdoor environments. Its sleek, linear design combines high strength with a reduced weight for quick, straightforward installation, cutting down on costs and eliminating the need for maintenance. Engineered to endure the harshest conditions, it features robust corrosion resistance and operates in temperatures from -40°C to +65°C. Built for resilience, it meets stringent IK10, IP66/IP67/IP68, NEMA TYPE 4X, and TYPE 6P standards, ensuring full protection against impact, water, dust, and other challenging elements. This unit is also capable of withstanding winds up to 230 km/h while maintaining precise PTZ movement at full speed. Certified by Lloyd’s Register Marine Type for use in maritime settings and meeting railway standards, the ULISSE EVO THERMAL is ideal across various industries. It allows flexible installation, including an upside-down mounting option, similar to speed domes. The unit’s quick-fit connectors for Ethernet/PoE, power supply, and I/O streamline replacements during on-site servicing. Compatible with PoE 90W per the IEEE.802.3bt standard, it works seamlessly with standard power injectors and is backward compatible with PoH injectors (e.g., OHEP90INJ or OHEP90INJO). This makes ULISSE EVO THERMAL a robust, efficient choice for continuous surveillance in challenging conditions.

Features:

• Designed to resist and last
• Thermal camera with radiometric functions
• Unbeatable solution for outdoor applications
• PoE compatible with standard IEEE.802.3bt
• ULISSE EVO THERMAL PTZ thermal camera with radiometric functions, 25mm, 640x512, 30Hz, 24Vac/dc - PoE 90W

Specifications:

• Product Type: PTZ Thermal Camera
• Resolution: 640 X 512
• Lens Size: 25mm
• Part Number : UET2EA000AH
