60MHz Differential Probe CT4196
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Bandwidth | 60 MHz (10x attenuation) 50 MHz (5x attenuation) 15 MHz (1x attenuation) |
| Attenuation | 1x/5x/10x |
| Accuracy | ±2% |
| Safety Specifications | IEC 61010-1 CAT II |
| Source Impedance | 50 Ω |
| Power Supply | 9 V power adapter (included) |
| BNC Cable Length | 100 cm |
| Input Leads Length | 55 cm |
| Weight | 250 g |
| Dimensions | 195 x 55 x 30 mm |
| Part No. | CT4196 |

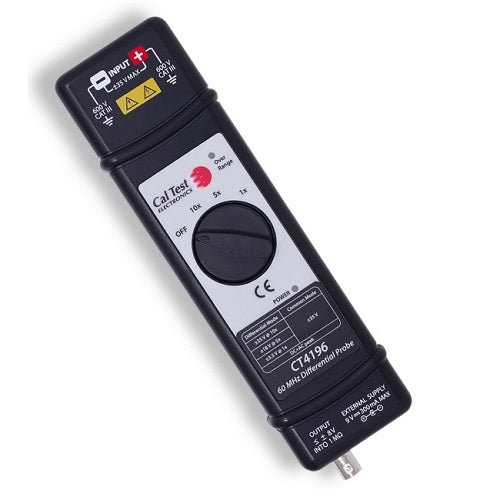

60MHz Differential Probe
Description:
The CT4196 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. Designed for high sensitivity measurements, the probe offers up to 60 MHz bandwidth. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
• Meets IEC 61010-1 safety standard
• Selectable attenuation settings of 1x/5x/10x
• 60 MHz bandwidth (at 10x attenuation setting)
• 50 MHz bandwidth (at 5x attenuation setting)
• 15 MHz bandwidth (at 1x attenuation setting)
• Up to ±35 V differential
• High accuracy (±2%)
• Power and over range indicator LEDs
• Optional European style 9 V power adapter (CT3957-EU)

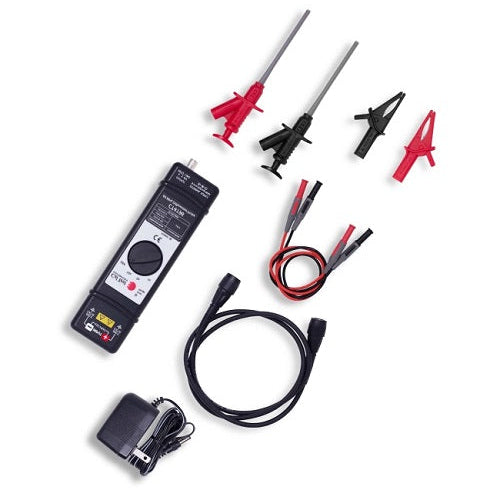

Comes with:
• (2) Pincer Clips, black & red
• (2) Alligator Clips, black & red
• (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
• Insulated BNC cable, 100 cm
• 9 V Power adapter included (CT3957-NA)
Download PDF Spec Sheet
