600 Dura-Ty Cable Tie Kit Heavy Acetal UV DTKH-0 (Pack of 1 Reel Strapping 50 & Head 25)

Where are we? 4 Continents 9 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• 600: This typically would indicate the total length of the cable tie strapping available on the reel, likely measured in feet.
• Dura-Ty: Suggests a brand name or a specific line of products known for durability and reliability.

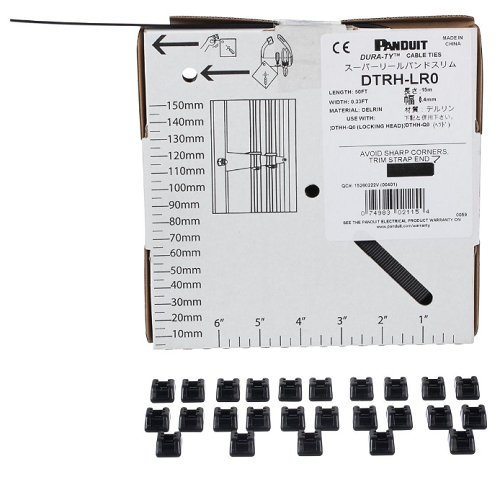

• Cable Tie Kit: This means the product is a complete set, which includes both the cable tie strapping and the heads required to secure the ties.
Also Known As:
• Zip tie kit
• Tie wrap package
• Strapping and fastener set
• Bundling strap kit
Common Applications:
• Securing cables and wires in outdoor settings where UV resistance is required, such as solar panel installations or telecommunications towers.
• Heavy-load applications in industrial settings where a strong and durable binding solution is necessary.
• Agricultural uses where long-lasting and weather-resistant ties are beneficial for securing fencing or supporting plants.
• Marine applications where both durability and resistance to the harsh sun and saltwater environment are needed.
Standards Met:
TR-TSY-000789, RoHS Compliant
Construction:

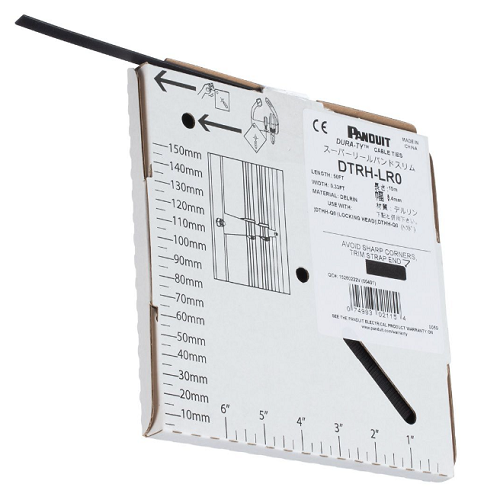

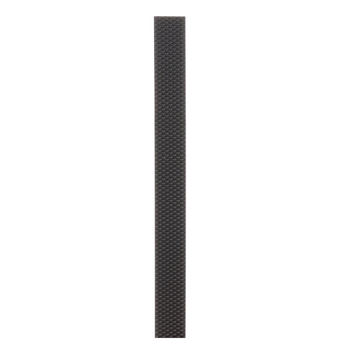

• A reel of heavy-duty acetal material that can be cut to the desired length for flexibility in application.
• UV stabilizers integrated into the acetal to enhance resistance to the degrading effects of sunlight.

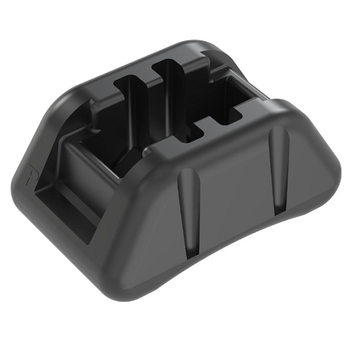

• Durable heads designed to secure the strapping tightly once it is looped and locked into place.
Features:
• Customizable length for specific bundling needs, allowing for versatility in use.
• High durability for heavy-duty applications.
• UV resistance to ensure performance and longevity in outdoor or sunlight-exposed environments.
• The convenience of having both strapping and heads in one kit, streamlining the process of creating cable ties.
Specification:
Product Type: | Cable Tie |
Sub Brand: | Dura-Ty™ |
Color: | Black |
Environment: | Indoor/Outdoor |
Material: | Acetal |
Resistance Properties: | UV Resistant |
Overall Length: | 600 In. (15240mm) |
Body Width: | 0.331 In. (8.4 mm) |
Body Thickness: | 0.064 In. (1.6 mm) |
Maximum Bundle Diameter: | 0.18 In. (4.8 mm) |
Minimum Bundle Diameter: | 0.02 In. (0.51 mm) |
Minimum Loop Tensile Strength: | 890 N (200 lb) |
Maximum Operating Temperature: | 85 °C (185 °F) |
Minimum Operating Temperature: | -60 °C (-76 °F) |
Minimum Installation Temperature: | -20 °C (-4 °F) |
For Use With: | GTH-E, GS4EH-E, STH2, STHV |
Part No: | DTKH-0 |
Download PDF Spec Sheet
